Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 13094913BQ Door, Freezer (includes Trim)   (Replaces: 12894235B) Special Order $ 1,153.37

2 W10436252 Gasket, Door (black) In-Stock Immediately $ 362.28

3 W10130133 Trim, Top And Bottom In-Stock Immediately $ 201.23

4 W10130137 Trim, Side Special Order $ 139.30


    View Diagram in Separate Window     Print Icon   Print Part List

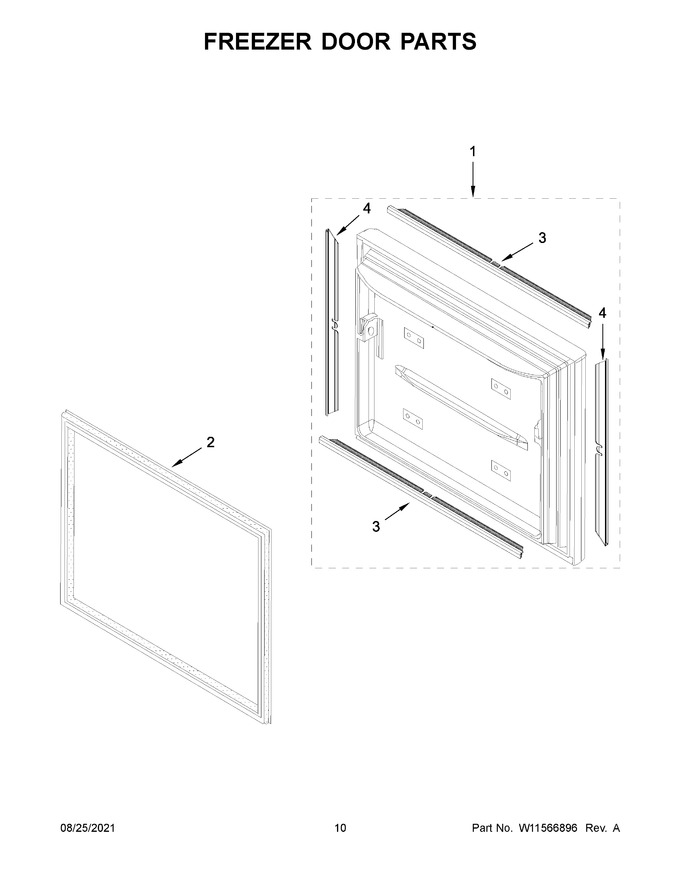

Diagram for KRFC302EPA05
