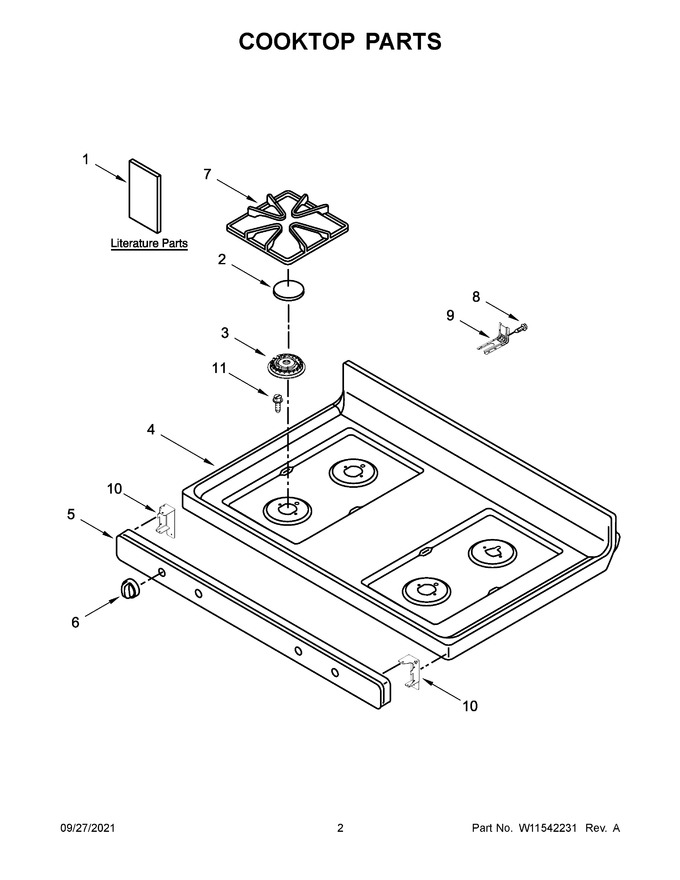

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W11450808		Owners Manual		Appelez-nous	-
2	W11455147		Set, Burner Cap (black (set Of 4))   (Replaces: W11395131)			Immediately	$ 94.46
3	W11435630		Spreader, Flame (left Front & Right Front)   (Replaces: W11352018)			Immediately	$ 78.47
4	W11475519		Cooktop (black)   (Replaces: W11418038)		Appelez-nous	-
5	8523855		Panel, Manifold (black)				$ 167.79
6	W11164105		Knob, Control (stainless)   (Replaces: W10844796)			Immediately	$ 76.61
7	W10915784		Grate Kit (black (set Of 4))   (Replaces: W10682667)				$ 345.85
8	7101P48560		Screw, Anti-tip Kit		Appelez-nous	-
9	W11447673		Bracket, Anti-tip   (Replaces: W11379945)				$ 31.82
10	8523249		Bracket, Manifold		Appelez-nous	-
11	W11241230		Screw   (Replaces: W10673618)			Immediately	$ 14.03
1A	W11427467		Quick Start Guide		Appelez-nous	-
1B	W11326946		Wiring Diagram		Appelez-nous	-
3A	W11435659		Spreader, Flame (left Rear)   (Replaces: W11352020)				$ 80.81
3B	W11435657		Spreader, Flame (right Rear)   (Replaces: W11352021)				$ 80.41
NI	3400964		Clip, Wire   (Replaces: 3196520)				$ 84.76
NI	3196896		Clip, Wire		Appelez-nous	-
NI	W11645866		Harness, Bake/broil   (Replaces: W11450461)				$ 36.66
NI	W11453753		Harness, Main		Appelez-nous	-
NI	W11244557		Screw (grounding)   (Replaces: 3196173)				$ 13.61
NI	NP		Cabinet (not A Servicable Part)		Appelez-nous	-
NI	7111P01760		Clamp, Wire		Appelez-nous	-
NI	16515		Clip, Harness   (Replaces: 313438)				$ 19.55
NI	W10334923		Clip, Gas Wiring		Appelez-nous	-
