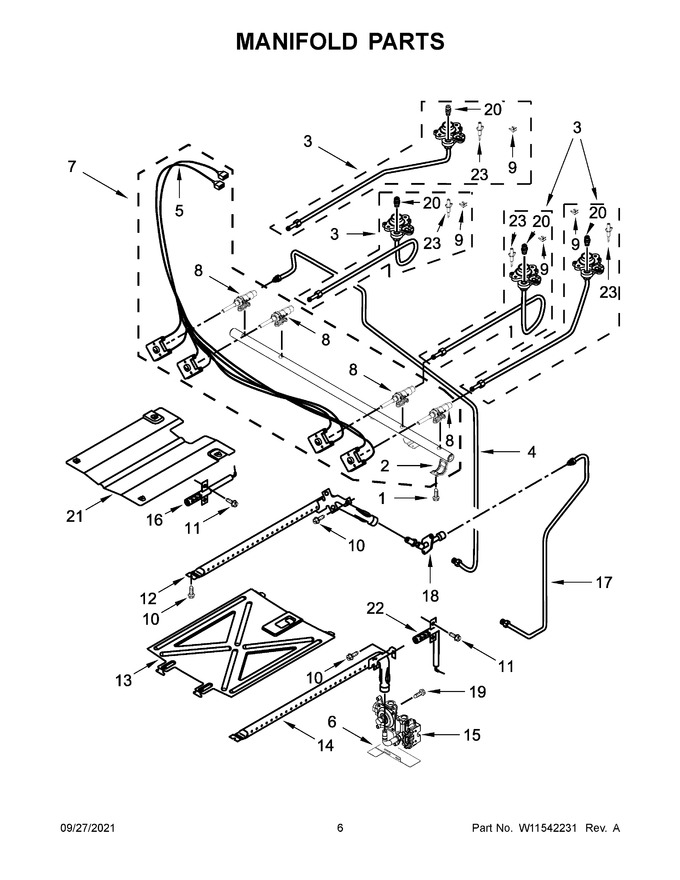

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10295997		Screw, Valve				$ 6.97
2	W10949105		Bracket, Saddle Valve   (Replaces: W10295996)				$ 21.67
3	W11459253		Orifice Holder Assembly (left Front)		Appelez-nous	-
4	W11680399		Tubing (manifold To Regulator)   (Replaces: W10215439)				$ 146.27
5	W11256561		Harness, Switch   (Replaces: W10812380)				$ 181.24
6	W10224921		Bracket, Aegis		Appelez-nous	-
7	W11347743		Manifold Assembly		Appelez-nous	-
8	W11628784		Valve, Gas (left Front & Right Front)   (Replaces: W11352012)				$ 73.58
9	W11684564		Spring, Electrode   (Replaces: W10827923)			Immediately	$ 11.90
10	3196265		Screw		Appelez-nous	-
11	W11684507		Screw   (Replaces: 3196385)				$ 13.59
12	WP8054078		Burner, Broiler   (Replaces: 8054078)				$ 227.96
13	WPW10184491		Spreader, Flame (oven)   (Replaces: W10184491)				$ 241.45
14	WP9758078		Burner, Bake   (Replaces: 9758078)				$ 215.30
15	W11449506		Regulator   (Replaces: W11370883)				$ 201.69
16	WPW10333842		Electrode, Broil   (Replaces: W10333842)			Immediately	$ 85.81
17	W10420040		Tube, Broiler Supply				$ 185.29
18	W11435700		Fitting, Broiler				$ 85.11
19	WP3400016		Screw   (Replaces: 3400016)				$ 7.95
20	W11700316		Orifice (15k) (left Front, Right Front)   (Replaces: W11485872)				$ 15.93
21	W10137062		Spreader, Flame (broiler)		Appelez-nous	-
22	W11524031		Electrode, Bake   (Replaces: W11450459)			Immediately	$ 56.90
23	W11453940		Electrode (left Front, Left Rear, Center)   (Replaces: W11428831)				$ 61.39
20A	W11485873		Orifice (9.5k) (left Rear)				$ 65.70
20B	W11712434		Orifice (5k) (right Rear)   (Replaces: W11485871)				$ 15.93
23A	W11453920		Electrode (right Front, Right Rear)   (Replaces: W11428858)				$ 61.29
3A	W11459254		Orifice Holder Assembly (left Rear)		Appelez-nous	-
3B	W11459255		Orifice Holder Assembly (right Front)		Appelez-nous	-
3C	W11459256		Orifice Holder Assembly (right Rear)		Appelez-nous	-
8A	W11699929		Valve, Gas (left Rear, Center)   (Replaces: W11352013)				$ 67.11
8B	W11352015		Valve, Gas (right Rear)				$ 107.66
NI	WPW10400495		Orifice, Lp Bake   (Replaces: W10400495)				$ 89.83
NI	WPW10182767		Tie, Manifold Wire   (Replaces: W10182767)				$ 6.95
NI	W11126051		Lp Bake And Broil Kit   (Replaces: W10566537)				$ 122.89
NI	W10758273		Orifice, Lp Broil   (Replaces: W10465080)				$ 8.12
NI	W11569688		Lp Conversion Kit   (Replaces: W11489400)				$ 70.31
NI	NP		Cabinet (not A Servicable Part)		Appelez-nous	-
