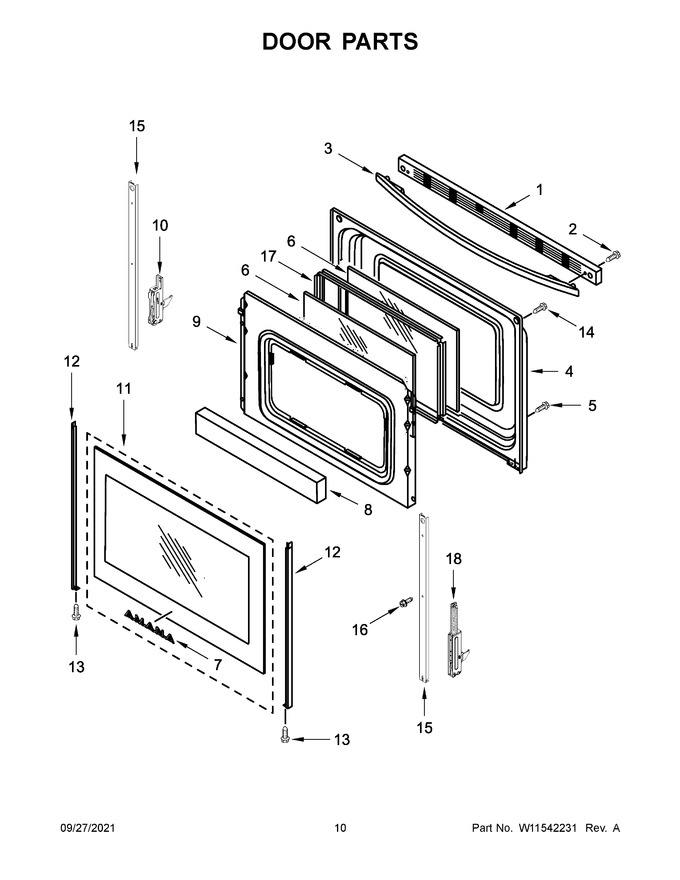

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | WPW10310922 | Trim, Top Vent (black) (Replaces: W10310922) |
|
Immediately | $ 175.37 | ||||
| 2 | W11396735 | Screw (Replaces: W10163951) |
|
$ 14.75 | |||||
| 3 | WPW10144883 | Handle, Door (stainless) (Replaces: W10144883) |
|
$ 252.66 | |||||
| 4 | WP9761344 | Liner, Door (Replaces: 9761344) |
|
Immediately | $ 372.89 | ||||
| 5 | WPW10031790 | Screw (Replaces: W10031790) |
|
Immediately | $ 8.74 | ||||
| 6 | WP8053948 | Glass, Inner (Replaces: 9758162) |
|
$ 178.28 | |||||
| 7 | W11240541 | Badge (stainless) (Replaces: W10846752) |
|
Immediately | $ 77.95 | ||||
| 8 | WPW10278991 | Insulation, Door Strip (Replaces: W10278991) |
|
Immediately | $ 101.37 | ||||
| 9 | W11539580 | Retainer, Insulation (Replaces: 9761357) |
|
$ 233.31 | |||||
| 10 | WPW10299227 | Hinge, Door (passive) (Replaces: W10299227) |
|
Immediately | $ 70.74 | ||||
| 11 | W11214475 | Glass, Outer Door (stainless) (Replaces: W11170209) |
|
$ 425.73 | |||||
| 12 | W10761018 | Trim, Door Side (black (left)) (Replaces: W10746436) |
|
Immediately | $ 53.77 | ||||
| 13 | WP355214 | Screw (Replaces: W10327235) |
|
Immediately | $ 8.80 | ||||
| 14 | WPW10200660 | Screw (Replaces: W10200660) |
|
Immediately | $ 8.24 | ||||
| 15 | W11502236 | Strap, Door (Replaces: W11379944) |
|
Immediately | $ 27.68 | ||||
| 16 | W10777162 | Screw (Replaces: W10031780) |
|
Immediately | $ 8.26 | ||||
| 17 | WPW10316950 | Frame, Glass (Replaces: W10316950) |
|
Immediately | $ 90.09 | ||||
| 18 | WPW10299224 | Hinge, Active (with Spring) (Replaces: W10299224) |
|
Immediately | $ 73.47 | ||||
| 12A | W10761014 | Trim, Door Side (black (right)) (Replaces: W10746435) |
|
Immediately | $ 72.96 |
