01 - Cover Sheet

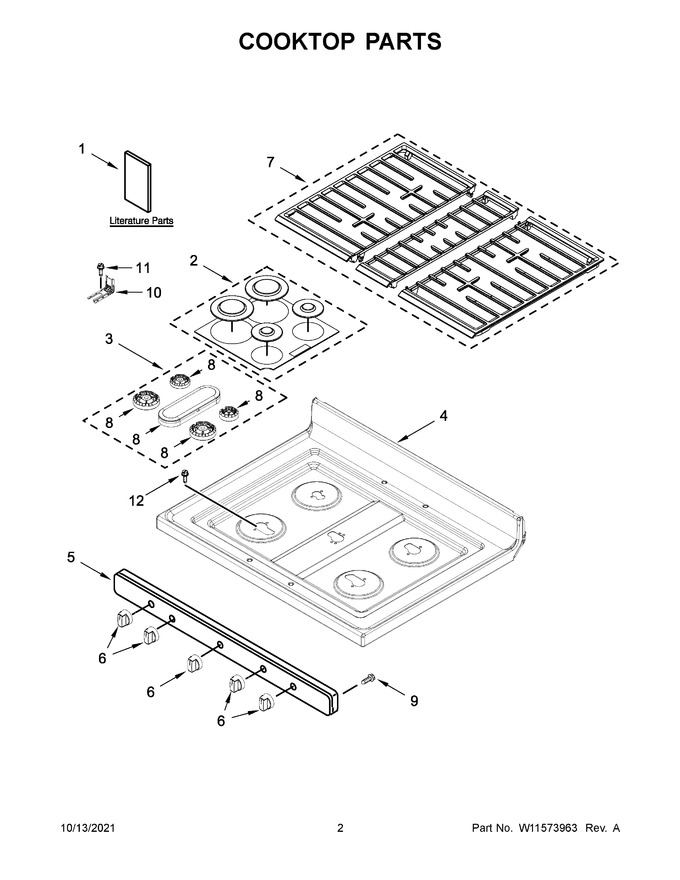

02 - Cooktop Parts
03 - Control Panel Parts
04 - Manifold Parts
05 - Chassis Parts
06 - Door Parts
07 - Drawer Parts
08 - Optional Parts (not Included)
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W11426600 | Owner's Manual |
|
- | |||||
| 2 | W11455147 | Burner Cap Kit (black (set Of 4)) (Replaces: W11395131) |
|
Immediately | $ 99.73 | ||||
| 3 | W11662402 | Burner Kit (Replaces: W11367107) |
|
Immediately | $ 130.11 | ||||
| 4 | W11454367 | Cooktop (black) (Replaces: W11418086) |
|
Immediately | $ 435.20 | ||||
| 5 | W11159628 | Panel, Manifold (black) (Replaces: W11089578) |
|
- | |||||
| 6 | W11159631 | Knob, Control (black) (Replaces: W11023140) |
|
$ 77.45 | |||||
| 7 | W11252165 | Grate Kit (black (set Of 3)) (Replaces: W11090908) |
|
$ 427.67 | |||||
| 8 | W11435630 | Spreader, Flame (left Front & Right Front) (Replaces: W11352018) |
|
Immediately | $ 82.12 | ||||
| 9 | WP3196557 | Screw (Replaces: 3196557) |
|
Immediately | $ 7.95 | ||||
| 10 | W11839019 | Bracket, Anti-tip (Replaces: W11379945) |
|
Immediately | $ 28.54 | ||||
| 11 | 7101P48560 | Screw, Anti-tip Kit |
|
- | |||||
| 12 | W11241230 | Screw (Replaces: W10673618) |
|
Immediately | $ 14.73 | ||||
| 1A | W11428051 | Quick Start Guide |
|
- | |||||
| 1B | W11401740 | Tech Sheet |
|
- | |||||
| 4A | W11478143 | Cooktop (white) (Replaces: W11418084) |
|
$ 422.23 | |||||
| 5A | W11089577 | Panel, Manifold (white) |
|
$ 227.04 | |||||
| 6A | W11023142 | Knob, Control (white) |
|
$ 76.39 | |||||
| 8A | W11435659 | Spreader, Flame (right Rear) (Replaces: W11352020) |
|
$ 84.85 | |||||
| 8B | W11435657 | Spreader, Flame (left Rear) (Replaces: W11352021) |
|
$ 84.43 | |||||
| 8C | W11475513 | Oval Burner Assembly (Replaces: W11357363) |
|
$ 109.81 | |||||
| NI | W11244557 | Screw (Replaces: 3196173) |
|
$ 14.29 | |||||
| NI | W11453753 | Harness, Main |
|
- | |||||
| NI | NP | Cabinet (not Serviced) |
|
- | |||||
| NI | W11645866 | Harness, Bake/broil (Replaces: W11450461) |
|
$ 38.49 | |||||
| NI | WPW10182767 | Tie, Manifold Wire (Replaces: W10182767) |
|
$ 7.30 | |||||
| NI | 16515 | Clip, Harness (Replaces: 313438) |
|
$ 20.53 | |||||
| NI | W10334923 | Clip, Gas Wiring |
|
- | |||||
| NI | 3400964 | Clip, Wire (Replaces: 3196520) |
|
$ 89.00 | |||||
| NI | 3196896 | Clip, Wire |
|
- |
