SELECT A DIAGRAM
01 - Cover Sheet
02 - Cooktop Parts
03 - Control Panel Parts
04 - Manifold Parts
05 - Chassis Parts
06 - Door Parts
07 - Drawer Parts
08 - Optional Parts (not Included)
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|

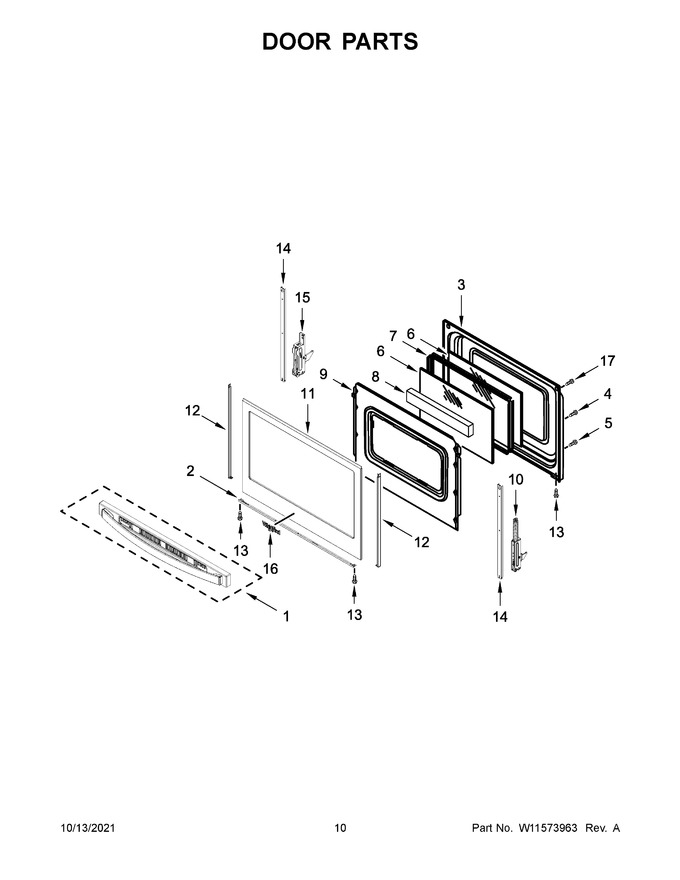

| 1 | W11553213 | Handle And Vent Assembly (black) (Replaces: W11242949) |
|
Immediately | $ 233.36 | ||||
| 2 | WP8523177 | Trim, Lower Door (black) (Replaces: 8523177) |
|
Immediately | $ 165.86 | ||||
| 3 | WP9761344 | Liner, Door (Replaces: 9761344) |
|
Immediately | $ 372.89 | ||||
| 4 | WPW10031790 | Screw (Replaces: W10031790) |
|
Immediately | $ 8.74 | ||||
| 5 | W10777162 | Screw (Replaces: W10031780) |
|
Immediately | $ 8.26 | ||||
| 6 | W11159620 | Glass, Inner (Replaces: W11044424) |
|
Immediately | $ 186.41 | ||||
| 7 | WPW10316950 | Frame, Glass (Replaces: W10316950) |
|
Immediately | $ 90.09 | ||||
| 8 | WPW10278991 | Insulation, Door Strip (Replaces: W10278991) |
|
Immediately | $ 101.37 | ||||
| 9 | W11539580 | Retainer, Insulation (Replaces: 9761357) |
|
$ 233.31 | |||||
| 10 | WPW10299226 | Hinge, Active (Replaces: W10299226) |
|
Immediately | $ 72.76 | ||||
| 11 | W11702167 | Glass, Outer Door (black) (Replaces: W10884159) |
|
Immediately | $ 184.73 | ||||
| 12 | W10761018 | Trim, Door (black (left)) (Replaces: W10746436) |
|
Immediately | $ 53.77 | ||||
| 13 | WP355214 | Screw (Replaces: W10327235) |
|
Immediately | $ 8.80 | ||||
| 14 | W11502236 | Strap, Door (Replaces: W11379944) |
|
Immediately | $ 27.68 | ||||
| 15 | WPW10299227 | Hinge, Door (passive) (Replaces: W10299227) |
|
Immediately | $ 70.74 | ||||
| 16 | W11178521 | Badge (Replaces: W10884775) |
|
Immediately | $ 63.13 | ||||
| 17 | WPW10200660 | Screw (Replaces: W10200660) |
|
Immediately | $ 8.24 | ||||
| 11A | WPW10409945 | Glass, Outer Door (white) (Replaces: W10409945) |
|
Immediately | $ 248.79 | ||||
| 12A | W10761014 | Trim, Door (black (right)) (Replaces: W10746435) |
|
Immediately | $ 72.96 | ||||
| 12B | WP8523172 | Trim, Door (white (left)) (Replaces: 8523172) |
|
Immediately | $ 69.93 | ||||
| 12C | WP8523166 | Trim, Door (white (right)) (Replaces: 8523166) |
|
Immediately | $ 84.23 | ||||
| 1A | W11590861 | Handle And Vent Assembly (white) (Replaces: W11242947) |
|
Immediately | $ 199.15 | ||||
| 2A | W11594186 | Trim, Lower Door (white) (Replaces: 8523175) |
|
Immediately | $ 61.37 |
