SELECT A DIAGRAM

01 - Cover Sheet


02 - Cooktop Parts


03 - Control Panel Parts


04 - Manifold Parts


05 - Chassis Parts


06 - Door Parts


07 - Drawer Parts


08 - Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart

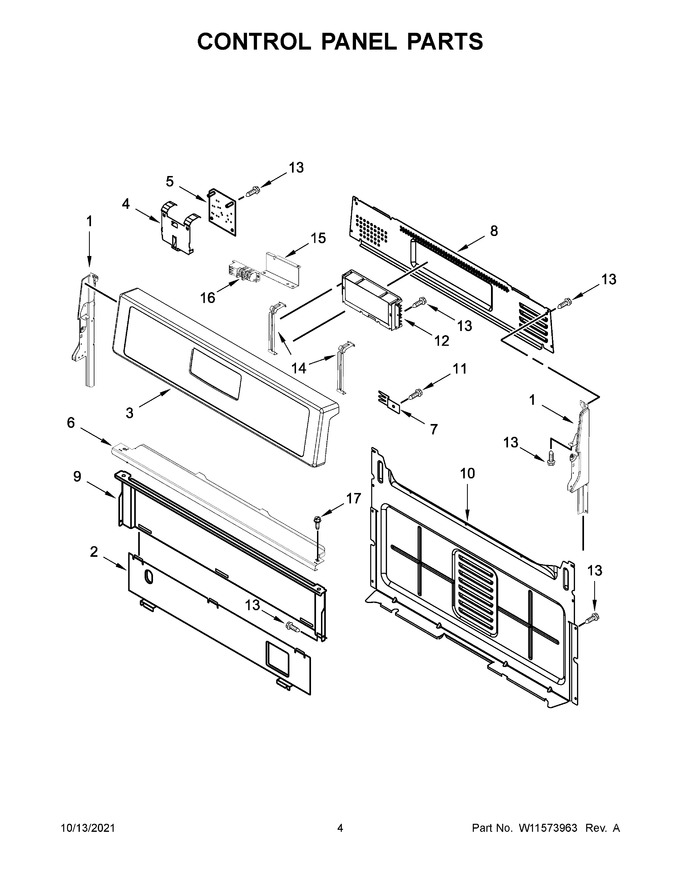

1	W11219664		Endcap (black (left))   (Replaces: W11130372)				$ 153.83
2	8053505		Shield, Heat				$ 165.89
3	W11101498		Panel, Control (black)   (Replaces: W10885611)		Appelez-nous	-
4	W10762981		Bracket, Mounting				$ 76.42
5	W11162730		Module, Spark Dsi   (Replaces: W10920631)			Immediately	$ 218.43
6	W10516123		Bracket, Console Mounting		Appelez-nous	-
7	8523412		Bracket, Rear Cooktop				$ 167.90
8	W10198745		Cover, Upper				$ 128.90
9	W10192841		Shield, Heat				$ 106.69
10	W10184370		Cover, Back		Appelez-nous	-
11	WP3196557		Screw   (Replaces: 3196169)			Immediately	$ 7.95
12	W11159621		Control, Electronic (lcx) (black)   (Replaces: W11204525)				$ 468.99
13	W11233072		Screw   (Replaces: 3196178)			Immediately	$ 14.72
14	W11230932		Bracket, Control   (Replaces: W10695491)			Immediately	$ 84.81
15	W10901176		Bracket, Ignitor   (Replaces: W10797001)		Appelez-nous	-
16	WPW10475149		Module, Spark (5+0)   (Replaces: W10475149)			Immediately	$ 179.05
17	WP3196175		Screw   (Replaces: 3196165)			Immediately	$ 7.55
12A	W11317839		Control, Electronic (lcx) (white)   (Replaces: W11204522)		Appelez-nous	-
1A	W11219665		Endcap (black (right))   (Replaces: W11130379)				$ 45.17
1B	W11219365		Endcap (white (left))   (Replaces: W11130371)				$ 42.45
1C	W11219370		Endcap (white (right))   (Replaces: W11130378)				$ 60.83
3A	W11101500		Panel, Control (white)   (Replaces: W10885610)				$ 334.12
