SELECT A DIAGRAM

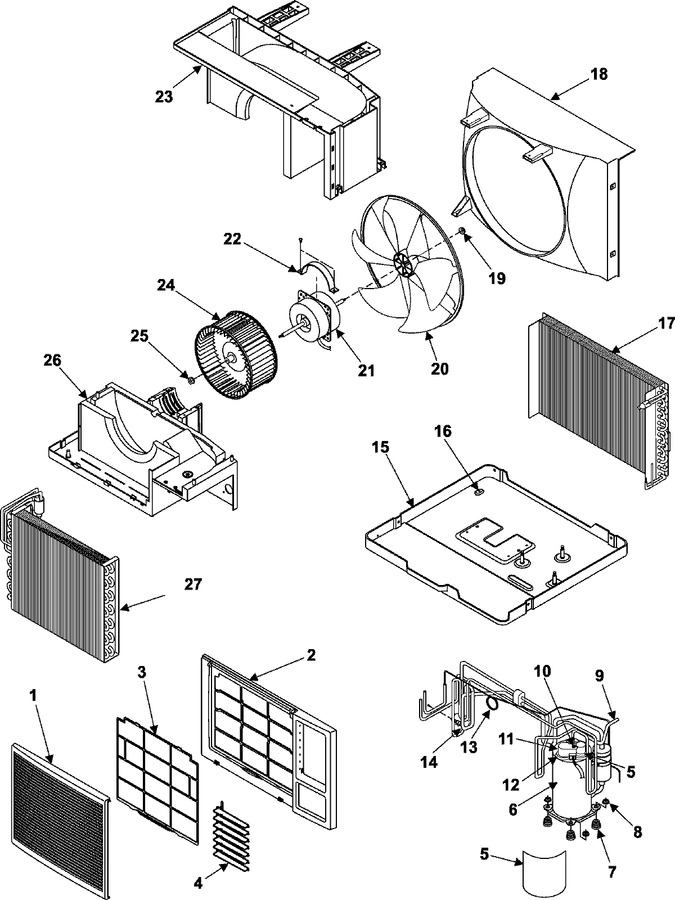

01 - Chassis Assembly


02 - Control Assembly


03 - Outer Case Assembly


04 - Supplemental Information


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	DB92-10319C		Assy-grille		Appelez-nous	-
1	DB64-10145A		Grille-air Inlet		Appelez-nous	-
2	DB64-70080A		Panel-front		Appelez-nous	-
3	DB63-30142A		Guard-air Filter		Appelez-nous	-
4	DB66-30169A		Blade-h		Appelez-nous	-
5	DB47-20001U		Olp				$ 35.64
6	44B124HW1EG		Rotary Compressor:115v,60hz,1p		Appelez-nous	-
7	Y00000000		See Note Grommet-isolator Currently Unavailable		Appelez-nous	-
8	DB60-30028A		Nut-washer		Appelez-nous	-
9	Y00000000		See Note Tube Discharge Currently Unavailable		Appelez-nous	-
10	DB60-30018A		Nut-flange		Appelez-nous	-
11	DB63-10026A		Cover-terminal		Appelez-nous	-
12	DB63-20002A		Gasket		Appelez-nous	-
13	Y00000000		See Note Assy Tube Capillary Currently Unavailable		Appelez-nous	-
14	Y00000000		See Note Assy Tube Suction Currently Unavailable		Appelez-nous	-
15	DB90-20184F		Assy-base		Appelez-nous	-
16	DB63-10355A		Cap-drain		Appelez-nous	-
17	Y00000000		See Note Assy Cond Currently Unavailable		Appelez-nous	-
18	DB90-00142A		Assy-case-cond		Appelez-nous	-
19	DB60-30004A		Nut-flange		Appelez-nous	-
20	555555		Fan-propeller   (Replaces: DB67-50072A)				$ 151.94
21	DB31-10145F		Motor-fan				$ 341.50
22	DB65-10101A		Clip-motor		Appelez-nous	-
23	Y00000000		See Note Assy Frame-upper Currently Unavailable		Appelez-nous	-
24	DB67-50073A		Blower				$ 50.00
25	DB60-00437A		Nut-flange   (Replaces: DB60-30020A)			Immediately	$ 5.57
26	Y00000000		See Note Assy Frame Low Currently Unavailable		Appelez-nous	-
27	Y00000000		See Note Assy Evap Currently Unavailable		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
