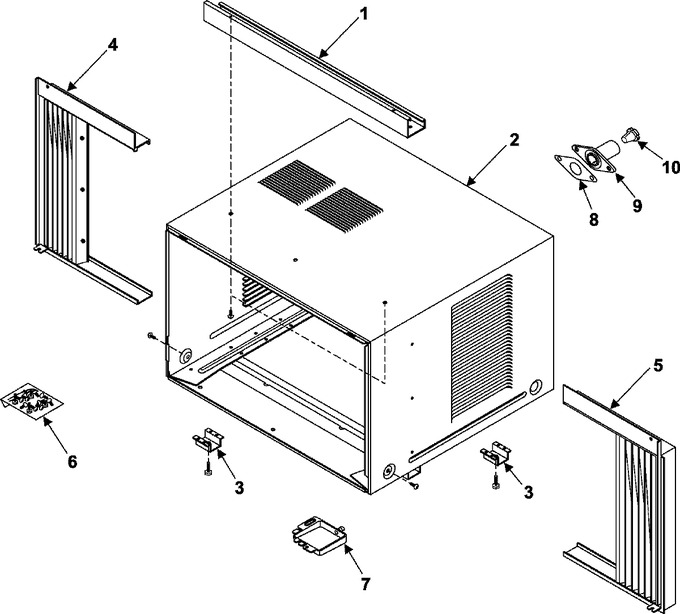

01 - Chassis Assembly


02 - Control Assembly


03 - Outer Case Assembly


04 - Supplemental Information


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	DB64-20055A		Shutter-angle Up				$ 47.79
2	Y00000000		See Note Assy-cabinet Currently Unavailable		Appelez-nous	-
3	DB61-30219F		Bracket-install				$ 9.49
4	Y00000000		See Note Assy Shutter-lf Currently Unavailable		Appelez-nous	-
5	Y00000000		See Note Assy Shutter-rh Currently Unavailable		Appelez-nous	-
6	Y00000000		See Note Assy Accessory Currently Unavailable		Appelez-nous	-
7	Y00000000		See Note Drain-pan Out Currently Unavailable		Appelez-nous	-
8	DB73-20042A		Rubber-tube		Appelez-nous	-
9	DB94-10009A		Tube-drain				$ 5.72
10	DB63-10365A		Cap				$ 0.85
