01 - Chassis Assembly
02 - Control Assembly
03 - Outer Case Assembly
04 - Supplemental Information
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|

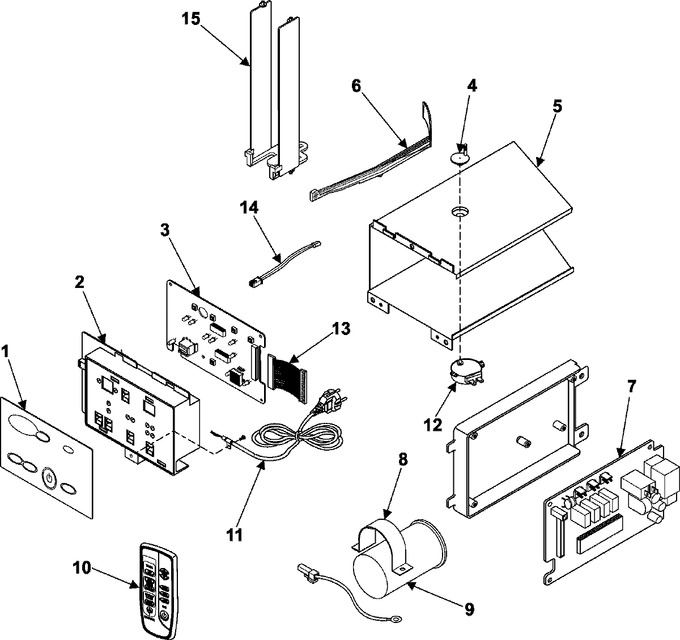

| 1 | DB64-00189A | Inlay Control-e |
|
- | |||||
| 2 | DB64-00108A | Panel-control-e |
|
- | |||||
| 3 | PD-SM12D-P1 | Assy Pcb Parts:asm12d,120v60hz |
|
- | |||||
| 4 | Y00000000 | See Note Arm-blade Currently Unavailable |
|
- | |||||
| 5 | Y00000000 | See Note Case Control,e Currently Unavailable |
|
- | |||||
| 6 | DB66-70024A | Lever-damper |
|
$ 50.00 | |||||
| 7 | PD-SM12A-00 | Assy Pcb Parts:asm12a(option), |
|
- | |||||
| 8 | DB65-10008B | Clip-capacitor |
|
- | |||||
| 9 | 2501-001191 | C-oil |
|
$ 96.64 | |||||
| 10 | DB93-00284B | Assy Remocon |
|
- | |||||
| 11 | DB39-00167B | Power Cord-assy |
|
- | |||||
| 12 | DB31-10152A | Motor-geard |
|
- | |||||
| 13 | DB39-20358C | Connect Wire-display |
|
- | |||||
| 14 | DB32-10031A | Thermistor-stopper |
|
- | |||||
| 14 | DB32-10051A | Thermistor |
|
- | |||||
| 15 | DB66-30170A | Blade-v |
|
- |
