Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 DB92-00519F Assy Panel Front Appelez-nous -
2 DB66-00552A Link Blade;h3-pjt,top,pp,l131, Appelez-nous -
3 DB66-00551A Blade-v,b;h3-pjt,top,sea,hips, Appelez-nous -
4 DB66-00550A Blade Appelez-nous -
5 DB61-01524A Frame-blade;h3-p/j,top,sea,hip Appelez-nous -
6 DB64-00912A Panel-front;h3-p/j,top,sea,hip Appelez-nous -
7 DB64-00913A Grille-air Inlet;h3-p/j,top,se Special Order $ 17.40

8 DB63-00807B Guard-air Filter Appelez-nous -
9 DB90-01215C Assy Base;h3-pjt,- Appelez-nous -
10 DB61-01512B Mount-motor Appelez-nous -
11 DB60-30028A Nut-washer Appelez-nous -
12 44B135HX1EL Rotary Comp Appelez-nous -
13 DB62-02469A Tube Discharge;aw1403m/xaa,c12 Appelez-nous -
14 DB62-02470A Tube Suction;aw1403m/xaa,-,to. Appelez-nous -
15 DB63-20003A Gasket Appelez-nous -
16 DB47-20001U Olp Special Order $ 35.64

17 DB63-10026A Cover-terminal Appelez-nous -
18 Y00000000 See Note Nut-terminal Cover Currently Not Available Appelez-nous -
19 DB96-02699C Assy Cond-unit;aw1403b,fp1.4,l Appelez-nous -
20 DB61-01495A Case Cond;h3-p/j,pp,t2.5,-,-,- Appelez-nous -
21 DB60-30028A Nut-washer Appelez-nous -
22 DB67-00047B Fan-propeller Special Order $ 56.16

23 DB31-00236A Motor Fan;ygn59-6b,14k-a,fyk-1 Special Order $ 194.18

24 DB97-02027A Assy Partition;-,pp,t2.5,-,-,b Appelez-nous -
25 DB73-00173B Rubber-cover Pipe;aw1403b,nrb- Appelez-nous -
26 DB67-00096A Blower Special Order $ 59.18

27 6021-001056 Nut-hexagon Flange Appelez-nous -
28 DB90-01288A Assy-plate Evap Casing;h3-p/j, Appelez-nous -
29 DB66-00553A Lever-damper;h3-p/j,top,sea,ab Special Order $ 4.50

30 DB96-03150A Assy Tube Capillary-a;aw1403m/ Appelez-nous -
31 DB96-03039A Assy Evap;h3-p/j,od9.52xr2x11h Appelez-nous -
32 DB61-01528A Case Evap-up;h3-p/j,top,25f0am Appelez-nous -
33 DB70-00342A Plate-reinf;h3-p/j,sgcc-m,-,t0 Appelez-nous -
34 DB73-10001A Grommet-isolator Appelez-nous -

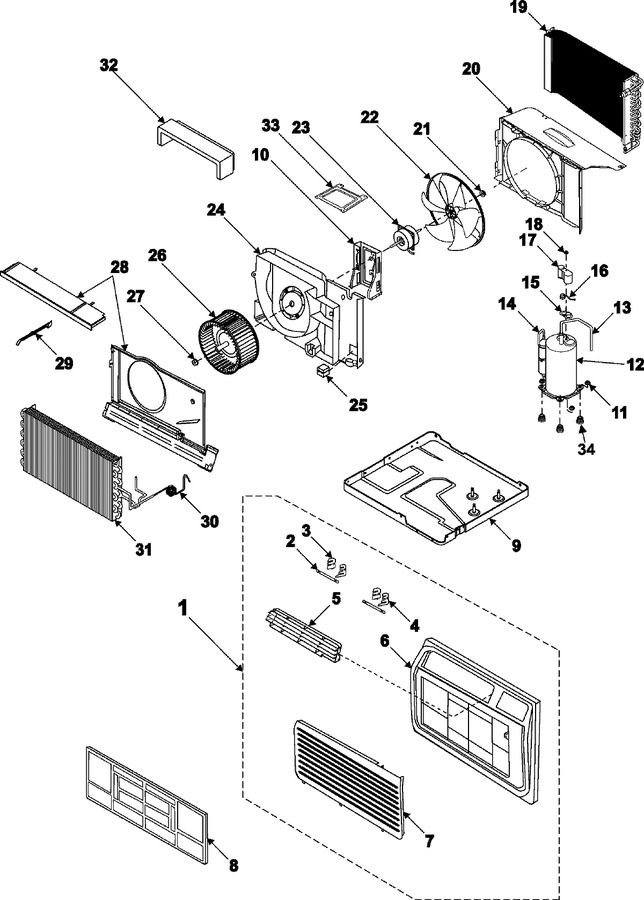

    View Diagram in Separate Window     Print Icon   Print Part List
