01 - Chassis Assembly

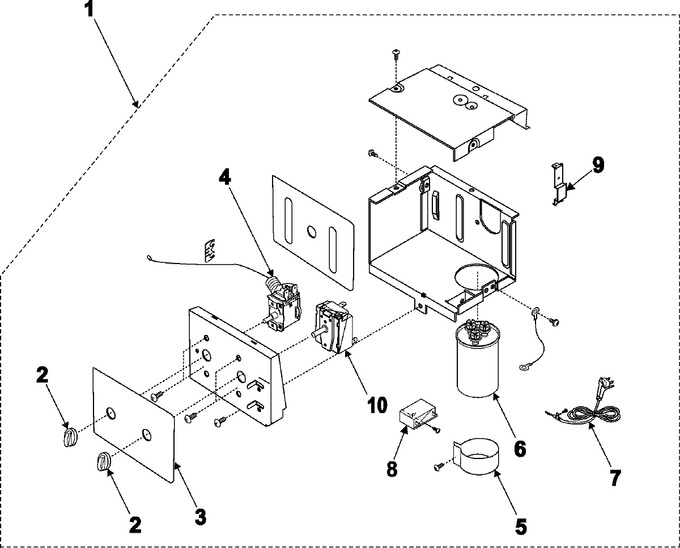

02 - Control Assembly
03 - Outer Case Assembly
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | DB93-02546B | Assy Control-box;co,-,14k,aw14 |
|
- | |||||
| 2 | DB94-00528A | Assy-knob Control;sea,h3-pjt,s |
|
- | |||||
| 3 | DB64-00955A | Inlay Control-m;h3-pjt |
|
- | |||||
| 4 | 3406-001045 | Switch, Rotary (240v) |
|
$ 47.74 | |||||
| 5 | DB65-10008B | Clip-capacitor |
|
- | |||||
| 6 | 2501-001231 | Capacitor (oil) |
|
- | |||||
| 7 | DB39-00343E | Power Cord-ass`y |
|
- | |||||
| 8 | 2301-001452 | C-film,mpe-ppf |
|
- | |||||
| 9 | DB61-01525A | Bracket-control;h3-p/j,top,sea |
|
- | |||||
| 10 | DB47-20074D | Thermostat |
|
$ 101.42 |
