Diagram for 01 - Chassis Assembly
01 - Chassis Assembly

Diagram for 02 - Control Assembly
02 - Control Assembly

Diagram for 03 - Outer Case Assembly
03 - Outer Case Assembly


New Model Search:


1-855-472-4566
< Back to Home
Keyword Search:

Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 DB64-01020A Shutter-angle Up;-,hips,t3.0,w Special Order $ 13.12

2 DB90-01217B Assy Cabinet;h2-pjt,- Appelez-nous -
3 DB61-30219F Bracket-install Special Order $ 9.49

4 DB92-00109A Assy Shutter-guard Lf Appelez-nous -
5 DB92-00108A Assy Shutter-guard Rh Appelez-nous -
6 DB97-90014X Assy-install Screw;h3-pjt,- Appelez-nous -

    View Diagram in Separate Window     Print Icon   Print Part List

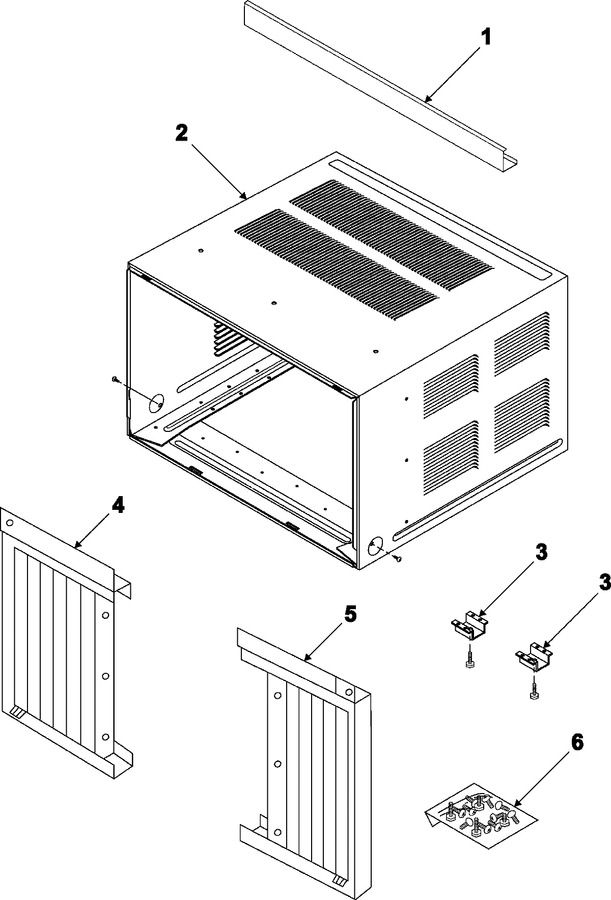

Diagram for AW1403M
