View Diagram in Separate Window
Print Part List
SELECT A DIAGRAM
01 - Cover Sheet

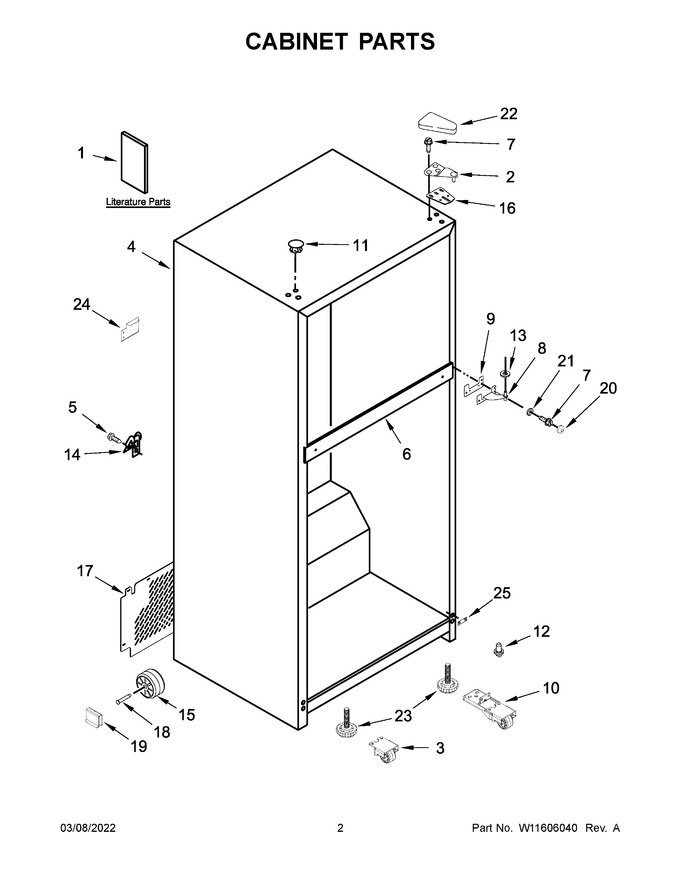

02 - Cabinet Parts
03 - Liner Parts
04 - Shelf Parts
05 - Door Parts
06 - Unit Parts
07 - Optional Parts
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W11511780 | Tech Sheet |
|
- | |||||
| 2 | WP2261963 | Assembly, Top Hinge (Replaces: 2261963) |
|
Immediately | $ 99.45 | ||||
| 3 | W11256723 | Assembly, Roller (Replaces: W10842654) |
|
$ 94.94 | |||||
| 4 | NP | Cabinet (not A Servicable Part) |
|
- | |||||
| 5 | WP489442 | Screw (Replaces: 489442) |
|
Immediately | $ 11.49 | ||||
| 6 | NP | Cabinet (not A Servicable Part) |
|
- | |||||
| 7 | WP489497 | Screw (Replaces: 489497) |
|
Immediately | $ 29.09 | ||||
| 8 | WP2254618 | Hinge, Center (Replaces: 2254618) |
|
Immediately | $ 92.02 | ||||
| 9 | WP2183852 | Shim, Hinge Center (Replaces: 2183852) |
|
$ 11.18 | |||||
| 10 | W11096015 | Lower Hinge And Roller Assembly (Replaces: W10843861) |
|
Immediately | $ 94.94 | ||||
| 11 | WPW10520307 | Plug, Hole (grey) (Replaces: W10520307) |
|
Immediately | $ 7.55 | ||||
| 12 | W11026307 | Hinge Pin (Replaces: W10638688) |
|
Immediately | $ 77.61 | ||||
| 13 | WP489467 | Washer, Plastic (Replaces: 489341) |
|
Immediately | $ 11.42 | ||||
| 14 | W11234470 | Clamp, Power Cord (Replaces: W11242280) |
|
$ 22.12 | |||||
| 15 | WPW10475495 | Roller (Replaces: W10475495) |
|
Immediately | $ 32.06 | ||||
| 16 | W11169703 | Shim, Top Hinge (white) (Replaces: 2221885) |
|
$ 15.79 | |||||
| 17 | W11476772 | Cover, Unit (Replaces: W11307288) |
|
$ 43.50 | |||||
| 18 | W11594405 | Axle, Roller (Replaces: 981126) |
|
Immediately | $ 19.12 | ||||
| 19 | WP2174706 | Clip, Roller (Replaces: 2174706) |
|
$ 11.53 | |||||
| 20 | W10849198 | Cap, Dome (grey) (Replaces: W10679139) |
|
$ 19.22 | |||||
| 21 | W10847959 | Cap, Washer Dome (Replaces: W10674773) |
|
$ 11.27 | |||||
| 22 | W10853622 | Cover, Hinge (grey) (Replaces: 2254510) |
|
Immediately | $ 82.46 | ||||
| 23 | W10854419 | Leveler (Replaces: W10671258) |
|
Immediately | $ 18.02 | ||||
| 24 | W11528668 | Access Cover, Valve (Replaces: W11458717) |
|
- | |||||
| 25 | W11528669 | Shim, Bottom Hinge (Replaces: W11359355) |
|
$ 16.89 | |||||
| 1A | W11507956 | Use And Care Guide |
|
- | |||||
| 1B | W11095239 | Energy Guide |
|
- |
