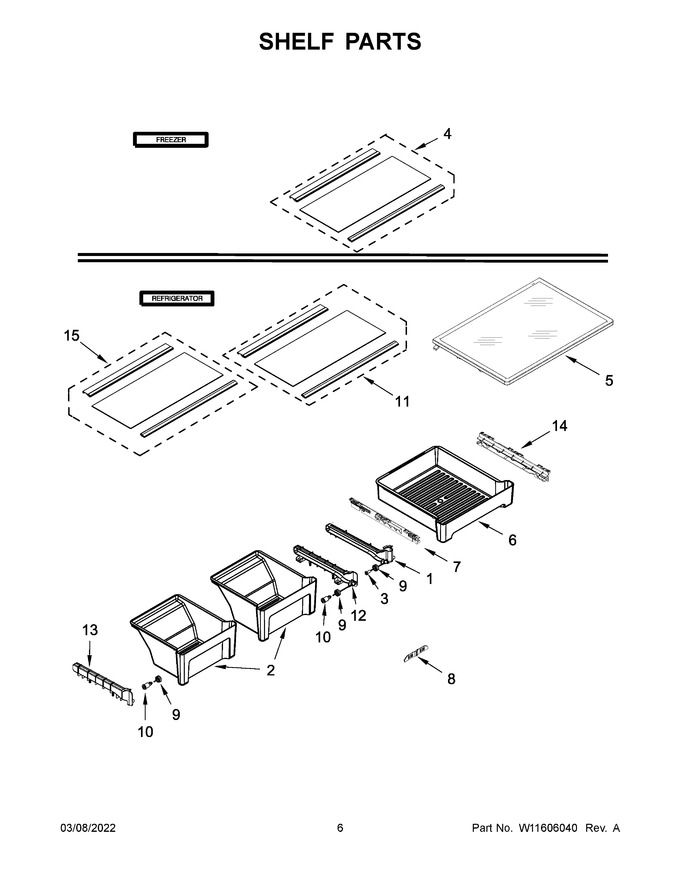

04 - Shelf Parts
05 - Door Parts
06 - Unit Parts
07 - Optional Parts
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W11773992 | Rail, Center Track (Replaces: W11526406) |
|
Immediately | $ 32.11 | ||||
| 2 | W10860753 | Assembly, Crisper Pan (Replaces: W10668872) |
|
$ 141.25 | |||||
| 3 | WP3400065 | Screw (stainless) (Replaces: 3400065) |
|
Immediately | $ 8.18 | ||||
| 4 | W11567275 | Assembly, Shelf (freezer) (Replaces: W11517067) |
|
- | |||||
| 5 | WPW10704017 | Assembly, Shelf (Replaces: W10704017) |
|
$ 249.62 | |||||
| 6 | WPW10308848 | Meat Pan (Replaces: W10308848) |
|
$ 162.37 | |||||
| 7 | WPW10468555 | Rail, Track (left Hand) (Replaces: W10468555) |
|
Immediately | $ 25.10 | ||||
| 8 | W11590562 | Control, Humidity (Replaces: W10356844) |
|
$ 23.45 | |||||
| 9 | W11164152 | Roller, Pan (Replaces: W10628713) |
|
Immediately | $ 15.74 | ||||
| 10 | W11175807 | Axle, Roller (Replaces: W10628712) |
|
Immediately | $ 17.90 | ||||
| 11 | W11567280 | Assembly, Shelf (crisper) (Replaces: W11517078) |
|
$ 92.82 | |||||
| 12 | W11084244 | Rail, Track (right Hand) (Replaces: W11526405) |
|
Immediately | $ 99.24 | ||||
| 13 | W11818646 | Rail, Track (left Hand) (Replaces: W11526404) |
|
Immediately | $ 31.03 | ||||
| 14 | WPW10468556 | Rail, Track (right Hand) (Replaces: W10468556) |
|
Immediately | $ 7.55 | ||||
| 15 | W11567277 | Assembly, Shelf (Replaces: W11517071) |
|
$ 93.21 |
