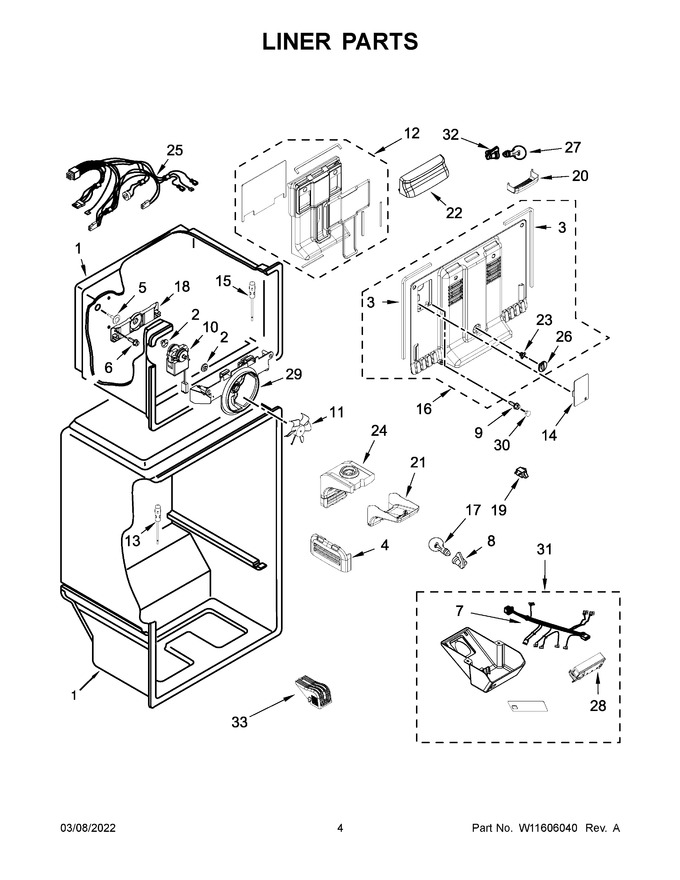

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | NP | Cabinet (not A Servicable Part) |
|
- | |||||
| 2 | WP2264462 | Grommet (Replaces: 2197380) |
|
Immediately | $ 46.17 | ||||
| 3 | W10849448 | Gasket, Evaporator Cover (Replaces: W10709194) |
|
Immediately | $ 95.69 | ||||
| 4 | W10848854 | Cover, Air Filter |
|
- | |||||
| 5 | WP941839 | Hole Plug (white) (Replaces: 941839) |
|
$ 8.03 | |||||
| 6 | WP488163 | Screw (Replaces: 488208) |
|
$ 7.92 | |||||
| 7 | W11436564 | Wire Assembly, Control Box (Replaces: W11203360) |
|
Immediately | $ 76.11 | ||||
| 8 | 4387478 | Socket, Light (Replaces: 2162085) |
|
Immediately | $ 115.67 | ||||
| 9 | W11544659 | Screw (Replaces: 8281232) |
|
$ 14.35 | |||||
| 10 | WP2315539 | Motor, Evaporator Fan (Replaces: 2315539) |
|
Immediately | $ 83.25 | ||||
| 11 | WP2163777 | Fan Blade (Replaces: 2163777) |
|
Immediately | $ 66.15 | ||||
| 12 | W10919804 | Assembly, Evaporator Plenum (Replaces: W10676682) |
|
Immediately | $ 101.06 | ||||
| 13 | W11438736 | Thermistor, Refrigerator (Replaces: W11108173) |
|
Immediately | $ 84.04 | ||||
| 14 | W11341621 | Cover, Hole |
|
- | |||||
| 15 | WPW10384183 | Thermistor (Replaces: W10384183) |
|
Immediately | $ 118.47 | ||||
| 16 | W11562262 | Cover, Evaporator (Replaces: W11510096) |
|
Immediately | $ 119.14 | ||||
| 17 | W11216993 | Lamp, Led (Replaces: W11125625) |
|
Immediately | $ 43.24 | ||||
| 18 | 2254454 | Bracket, Evaporator Fan Rear |
|
Immediately | $ 75.44 | ||||
| 19 | W11384469 | Switch, Light (Replaces: W10847853) |
|
Immediately | $ 39.09 | ||||
| 20 | WPW10313918 | Lens, Light (Replaces: W10313918) |
|
Immediately | $ 95.34 | ||||
| 21 | W10637058 | Cover, Air Diffuser |
|
$ 88.95 | |||||
| 22 | WPW10313917 | Housing, Freezer Lighting (Replaces: W10313917) |
|
Immediately | $ 91.07 | ||||
| 23 | W11244470 | Baffle, Air Manual (Replaces: W10570951) |
|
$ 85.54 | |||||
| 24 | W10861170 | Assembly, Air Diffuser (Replaces: W10633587) |
|
Immediately | $ 78.06 | ||||
| 25 | W11562214 | Assembly, Evaporator Fan Wire (includes Thermal Fuse) (Replaces: W11314499) |
|
Immediately | $ 96.83 | ||||
| 26 | W11026417 | Knob, Air Control (Replaces: W10570952) |
|
$ 91.85 | |||||
| 27 | W11518235 | Lamp, Led (Replaces: W11160686) |
|
Immediately | $ 29.29 | ||||
| 28 | W11599869 | Control, Electronic (Replaces: W11476562) |
|
$ 321.72 | |||||
| 29 | W10850162 | Bracket, Fan Motor (Replaces: W10321162) |
|
Immediately | $ 32.47 | ||||
| 30 | W10854527 | Cover, Screw (Replaces: W10487421) |
|
$ 9.88 | |||||
| 31 | W11666428 | Assembly, Control Box (Replaces: W11476573) |
|
$ 325.86 | |||||
| 32 | W11661565 | Socket, Light (Replaces: W10440814) |
|
Immediately | $ 35.82 | ||||
| 33 | W11512421 | Cover, Light (Replaces: W11242281) |
|
$ 15.82 |
