SELECT A DIAGRAM

01 - Cover Sheet


02 - Control Panel Parts


03 - Oven Parts

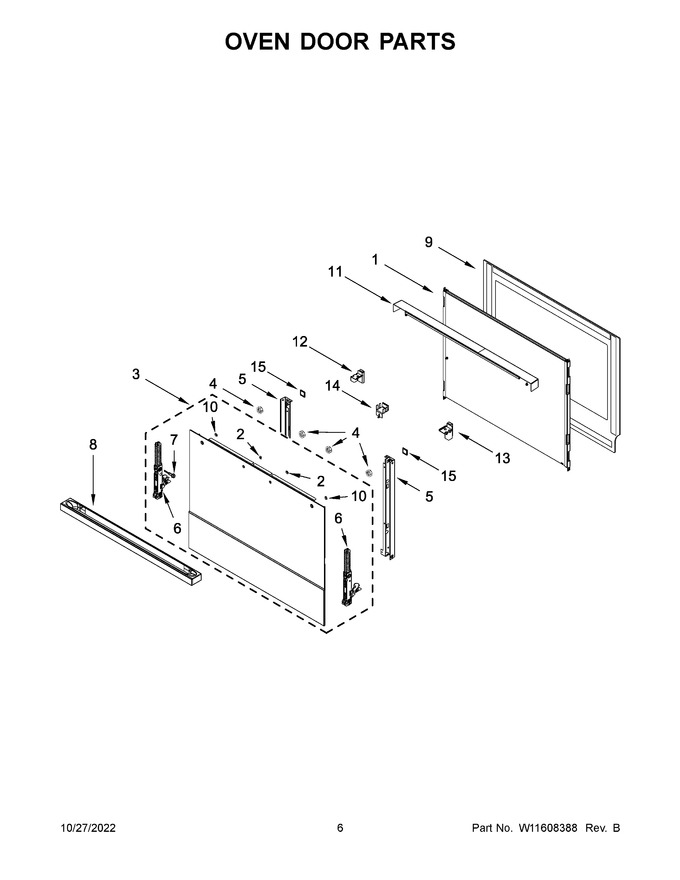

04 - Oven Door Parts


05 - Internal Oven Parts


06 - Cabinet And Stirrer Parts


07 - Internal Microwave Parts


08 - Top Venting Parts


09 - Microwave Door Parts


10 - Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W11600213		Air Divider Assembly   (Replaces: W11304273)			Immediately	$ 548.03
2	W11132942		Spacer, Handle				$ 16.03
3	W11602613		Door Assembly (includes Hinges) (stainless)   (Replaces: W11303860)				$ 1,189.27
4	W11602632		Nut   (Replaces: W11317741)		Appelez-nous	-
5	W11598126		Rail, Door (left)   (Replaces: W11302773)				$ 41.53
6	W11100730		Hinge, Door (left)				$ 127.01
7	WP3196183		Screw   (Replaces: 3196183)			Immediately	$ 7.75
8	W11411894		Assembly, Handle (stainless)				$ 1,017.12
9	W11602610		Glass Cavity Assembly   (Replaces: W11260091)				$ 564.14
10	W11676355		Washer, Door   (Replaces: W10319024)			Immediately	$ 14.10
11	W11705878		Top Vent Trim Assembly   (Replaces: W11597415)			Immediately	$ 317.53
12	W11598130		Bracket, Glass (left)   (Replaces: W11302803)				$ 44.71
13	W11598128		Bracket, Glass (right)   (Replaces: W11302802)				$ 44.71
14	W11598131		Bracket, Glass Reinforcement   (Replaces: W11302954)				$ 13.07
15	WPW10517428		Spacer, Vent   (Replaces: W10517428)			Immediately	$ 11.85
5A	W11598127		Rail, Door (right)   (Replaces: W11302780)				$ 41.53
6A	W11100731		Hinge, Door (right)			Immediately	$ 127.01

    View Diagram in Separate Window       Print Part List
