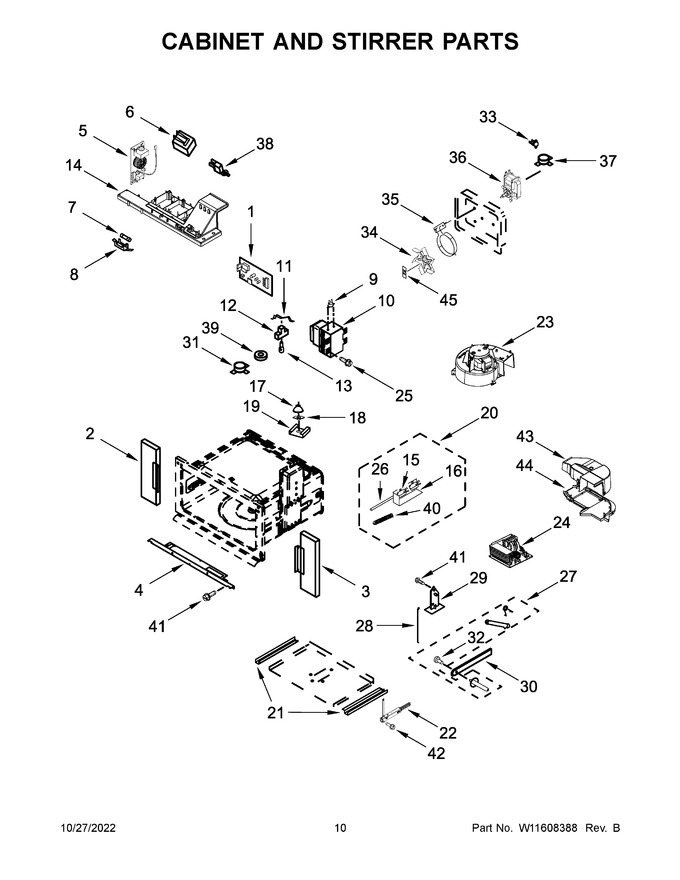

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W11325784 | Manager, Microwave Appliance (Replaces: W11289988) |
|
Immediately | $ 197.23 | ||||
| 2 | W10486208 | Trim, Side (left) (Replaces: 461967017491) |
|
$ 75.37 | |||||
| 3 | 461967017481 | Trim, Side (right) |
|
- | |||||
| 4 | W11334716 | Vent, Top Microwave |
|
$ 61.72 | |||||
| 5 | W11578573 | Filter, Noise (Replaces: W11505129) |
|
Immediately | $ 71.34 | ||||
| 6 | W11238401 | Transformer, Light (20v) (Replaces: 461967848621) |
|
Immediately | $ 343.70 | ||||
| 7 | W11188752 | Fuse (Replaces: 241908600053) |
|
Immediately | $ 17.37 | ||||
| 8 | W10245194 | Block, Fuse (Replaces: 4375231) |
|
$ 83.15 | |||||
| 9 | W11233913 | Thermostat, Magnetron (Replaces: 461967846741) |
|
Immediately | $ 148.65 | ||||
| 10 | W11578959 | Magnetron (Replaces: W11504545) |
|
Immediately | $ 123.62 | ||||
| 11 | W10465869 | Spring, Lamp |
|
Immediately | $ 98.82 | ||||
| 12 | WPW10490593 | Holder, Lamp (Replaces: W10490593) |
|
$ 74.11 | |||||
| 13 | W10886919 | Lamp, Halogen (Replaces: W10795595) |
|
Immediately | $ 32.22 | ||||
| 14 | 461967754821 | Duct, Magnetron |
|
$ 83.01 | |||||
| 15 | W10211972 | Switch (Replaces: 461967848881) |
|
Immediately | $ 52.40 | ||||
| 16 | W11214928 | Holder, Switch (Replaces: W10876593) |
|
$ 34.34 | |||||
| 17 | 423107022541 | Reflector |
|
$ 81.81 | |||||
| 18 | W11193483 | Lens, Lamp (Replaces: 423107720491) |
|
Immediately | $ 99.83 | ||||
| 19 | W11440819 | Clip, Spring |
|
$ 21.90 | |||||
| 20 | W11578578 | Harness, Interlock (Replaces: W11555168) |
|
Immediately | $ 121.70 | ||||
| 21 | 8205707 | Support, Bottom (Replaces: 461967008461) |
|
Immediately | $ 65.51 | ||||
| 22 | W11750429 | Hinge, Door (Replaces: W11319473) |
|
Immediately | $ 80.82 | ||||
| 23 | W11344874 | Cooling Fan Assembly (Replaces: W11131760) |
|
Immediately | $ 182.61 | ||||
| 24 | W11578579 | Inverter (Replaces: W11504539) |
|
Immediately | $ 247.61 | ||||
| 25 | 461967825971 | Screw |
|
- | |||||
| 26 | WPW10120235 | Rod, Push (Replaces: 461967750464) |
|
Immediately | $ 6.97 | ||||
| 27 | WPW10128850 | Assembly, Sliding Arm (Replaces: W10128850) |
|
Immediately | $ 135.31 | ||||
| 28 | W11700292 | Spring, Torsion (Replaces: 461967570351) |
|
$ 68.86 | |||||
| 29 | W11684510 | Support (Replaces: 461967750494) |
|
Immediately | $ 14.78 | ||||
| 30 | W11607070 | Arm, Sliding (Replaces: W11213889) |
|
$ 27.58 | |||||
| 31 | W10460457 | Sensor, Humidity |
|
Immediately | $ 132.65 | ||||
| 32 | WPW10128850 | Bushing (Replaces: 461967510191) |
|
Immediately | $ 135.31 | ||||
| 33 | W11607085 | Sensor, Convection (Replaces: 423107845441) |
|
Immediately | $ 42.30 | ||||
| 34 | W11512064 | Blade, Fan (Replaces: W11453899) |
|
Immediately | $ 163.19 | ||||
| 35 | WPW10493735 | Heater, Convection Element (Replaces: 461967848711) |
|
Immediately | $ 105.23 | ||||
| 36 | W11534564 | Motor, Convection Fan (Replaces: W11233698) |
|
Immediately | $ 100.67 | ||||
| 37 | W11208292 | Sensor, Termperature (Replaces: 241960100002) |
|
$ 154.42 | |||||
| 38 | 461967842541 | Thermoactuator |
|
$ 68.85 | |||||
| 39 | W10769147 | Sealing, Lamp |
|
Immediately | $ 23.32 | ||||
| 40 | W11715912 | Spring, Release Rod (Replaces: 423107570871) |
|
Immediately | $ 7.15 | ||||
| 41 | 461967825321 | Screw |
|
$ 11.55 | |||||
| 42 | W11690594 | Screw (shoulder) (Replaces: 461967825781) |
|
$ 14.09 | |||||
| 43 | W11646907 | Housing, Upper Inverter (Replaces: W11591019) |
|
$ 78.46 | |||||
| 44 | W11646906 | Housing, Lower Inverter (Replaces: W11591018) |
|
- | |||||
| 45 | W11724411 | Nut, Speed (Replaces: W10120233) |
|
Immediately | $ 57.68 |
