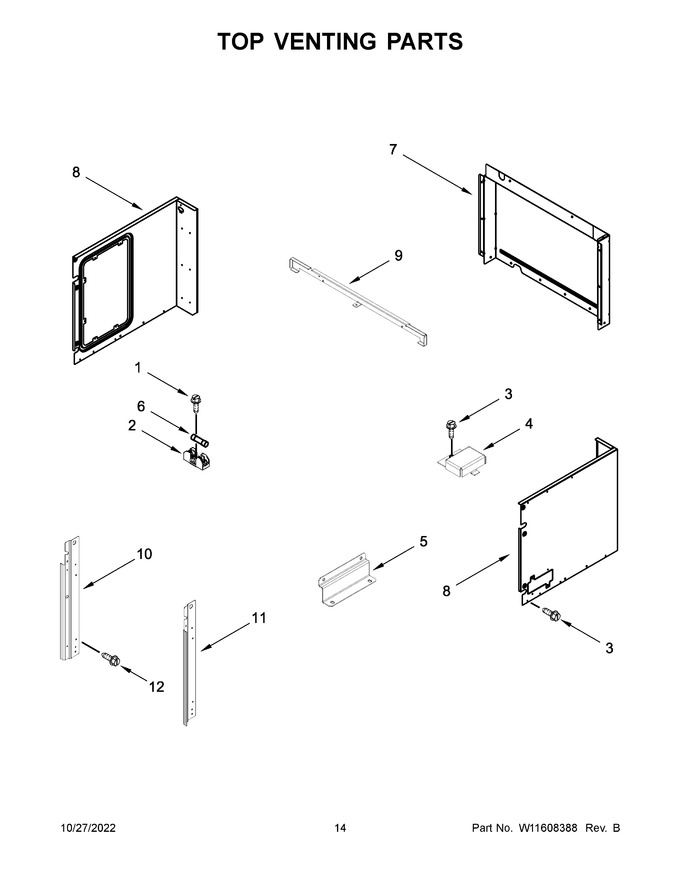

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	7101P06060		Screw		Appelez-nous	-
2	4454949		Holder, Fuse				$ 90.70
3	7101P42660		Screw		Appelez-nous	-
4	W11819303		Cover, Connector   (Replaces: 8285593)		Appelez-nous	-
5	W10283024		Side, Bracket				$ 75.10
6	WPW10017410		Fuse, Time Delay   (Replaces: W10017410)			Immediately	$ 21.17
7	W11171004		Cover, Combo Chassis Back Duct				$ 71.00
8	W11171909		Side, Combo Chassis (left)				$ 69.48
9	W10283022		Support, Crossbar				$ 77.45
10	W11627410		Rail, Side (left)   (Replaces: W11235470)				$ 58.76
11	W11627411		Rail, Side (right)   (Replaces: W11235471)				$ 56.77
12	7101P65360		Screw		Appelez-nous	-
8A	W11244451		Side, Combo Chassis (right)		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
