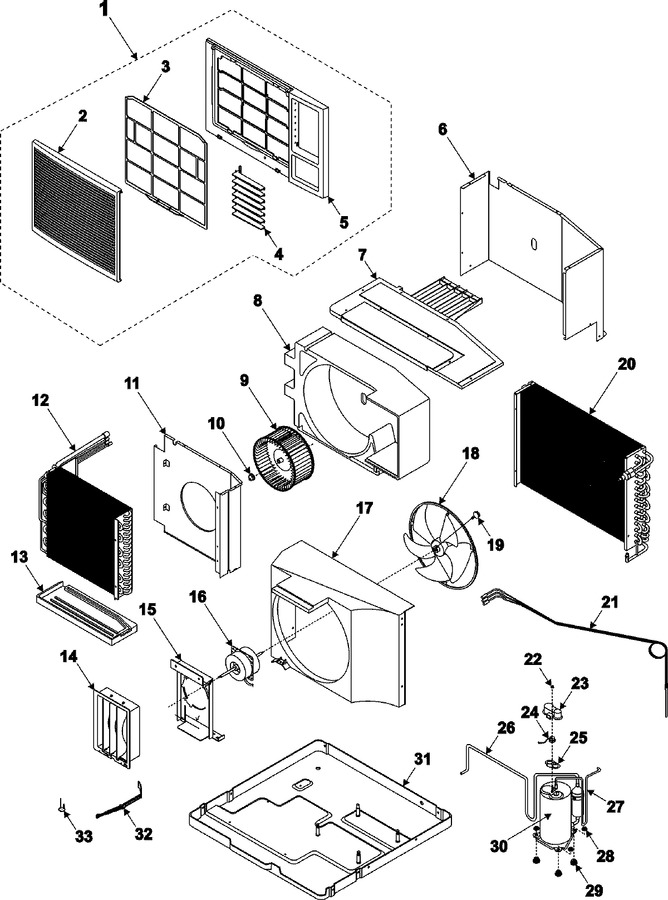

01 - Chassis Assembly
02 - Control Assembly
03 - Outer Case Assembly
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | DB92-70101F | Assy-panel-front |
|
- | |||||
| 2 | DB64-10163A | Grille-air Inlet ----sna |
|
- | |||||
| 3 | DB63-30167C | Guard-air-filter |
|
- | |||||
| 4 | DB66-30205A | Blade-h |
|
- | |||||
| 5 | DB64-70102A | Panel-front |
|
- | |||||
| 6 | DB70-10679A | Plate-partition |
|
- | |||||
| 7 | DB90-40174A | Assy-cover,evap |
|
- | |||||
| 8 | DB61-10182A | Case-evap |
|
- | |||||
| 9 | DB67-00096A | Blower |
|
$ 59.18 | |||||
| 10 | Y00000000 | See Note Part No. Db60-30002a Currently Not Available. |
|
- | |||||
| 11 | DB96-00026B | Ssy Evap-plate Casing |
|
- | |||||
| 12 | DB96-01047A | Assy Evap |
|
- | |||||
| 13 | DB63-40019A | Tray-drain |
|
- | |||||
| 14 | DB90-50161E | Assy Frame-blade |
|
- | |||||
| 15 | DB61-00440A | Mount Motor |
|
- | |||||
| 16 | DB31-00106A | Motor Fan |
|
- | |||||
| 17 | DB61-00448A | Case Cond |
|
- | |||||
| 18 | DB67-00047A | Fan, Propeller |
|
- | |||||
| 19 | DB60-30004A | Nut-flange |
|
- | |||||
| 20 | DB96-01048A | Assy Cond |
|
- | |||||
| 21 | DB62-00671A | Tube Capillary |
|
- | |||||
| 22 | DB60-30001A | Nut-terminal Cover |
|
- | |||||
| 23 | Y00000000 | See Note Part No. Db63-00489a Currently Not Available. |
|
- | |||||
| 24 | Y00000000 | See Note Part Currently Not Available. |
|
- | |||||
| 25 | Y00000000 | See Note Part No. Db63-00488a Currently Not Available. |
|
- | |||||
| 26 | DB62-00673A | Tube Suction |
|
- | |||||
| 27 | DB62-00672A | Tube Discharge |
|
- | |||||
| 28 | DB60-30028A | Nut-washer |
|
- | |||||
| 29 | DB73-00082A | Grommet-isolator |
|
- | |||||
| 30 | 55A240IU2EN | Rotary Compressor,24k,208-230v |
|
- | |||||
| 31 | DB90-00304B | Assy Base |
|
- | |||||
| 32 | DB66-70024A | Lever-damper |
|
$ 50.00 |
