SELECT A DIAGRAM
01 - Chassis Assembly
02 - Control Assembly

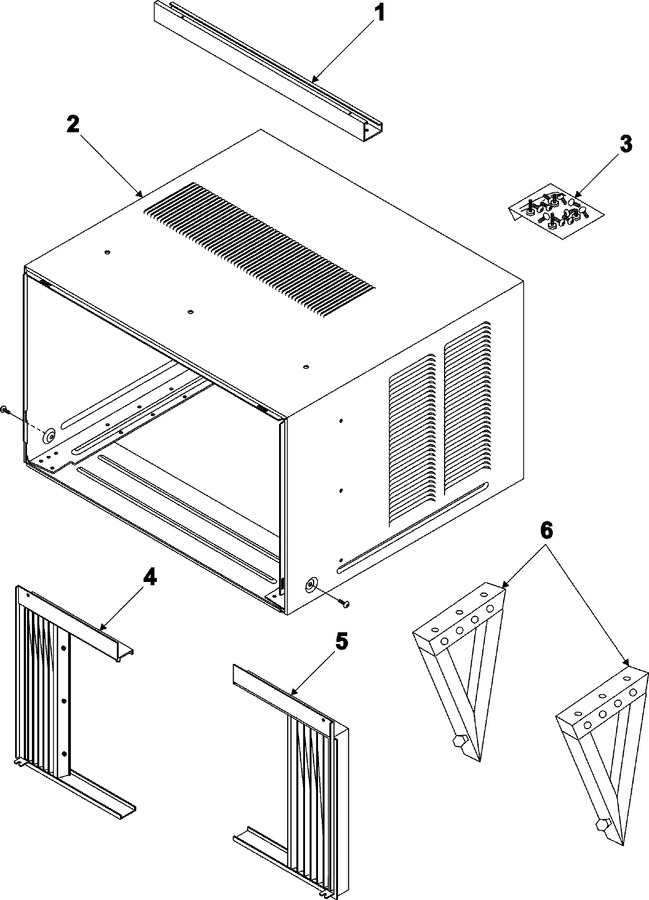

03 - Outer Case Assembly
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | DB64-00048D | Shutter-angle Up |
|
- | |||||
| 2 | DB90-00311A | Assy Cabi |
|
- | |||||
| 3 | DB97-30156C | Assy Accessory |
|
$ 5.99 | |||||
| 4 | DB92-00109A | Assy Shutter-guard Lf |
|
- | |||||
| 5 | DB92-00108A | Assy Shutter-guard Rh |
|
- | |||||
| 6 | DB70-00091A | Bracket-install Mounter |
|
- |
