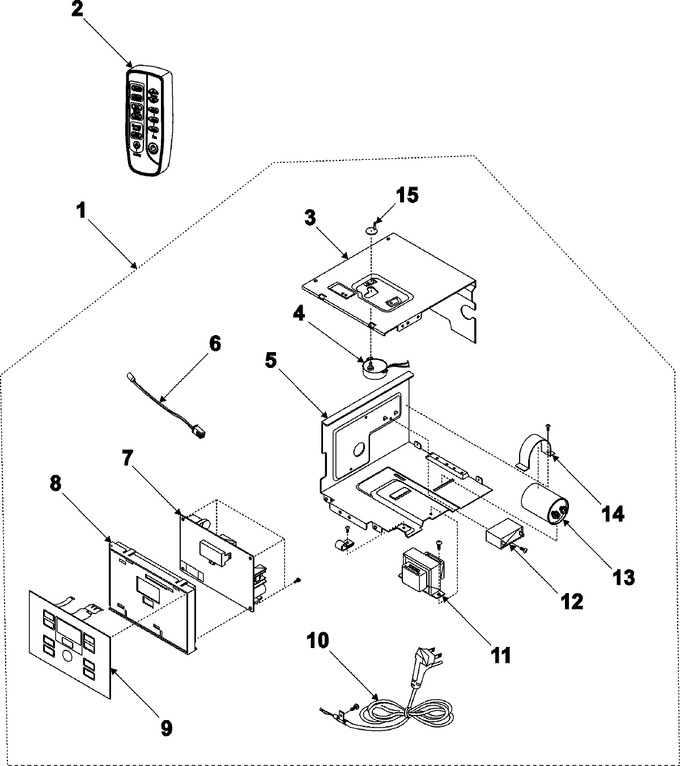

01 - Chassis Assembly
02 - Control Assembly
03 - Outer Case Assembly
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | DB93-01600D | Assy Control-box |
|
- | |||||
| 2 | DB93-01364Y | Assy Remocon |
|
- | |||||
| 3 | DB61-00419A | Case Control-up Sm(e) |
|
- | |||||
| 4 | DB95-20065F | Assy-motor Swing |
|
- | |||||
| 5 | DB61-00417A | Case Control-low |
|
- | |||||
| 6 | DB32-10051E | Thermistor |
|
$ 48.91 | |||||
| 7 | DB93-00874Q | Assy Pcb Main |
|
- | |||||
| 8 | DB64-00388A | Panel Control-m |
|
- | |||||
| 9 | DB34-00024F | Switch Membrane |
|
- | |||||
| 10 | DB39-00200B | Power Cord-assy |
|
- | |||||
| 11 | DB26-00006H | Trans-power |
|
- | |||||
| 12 | 2301-001449 | C-film,mpe-ppf |
|
- | |||||
| 13 | 2501-001238 | Capacitor (oil) |
|
- | |||||
| 14 | DB65-10008B | Clip-capacitor |
|
- | |||||
| 15 | DB66-00186A | Arm-blade |
|
- |
