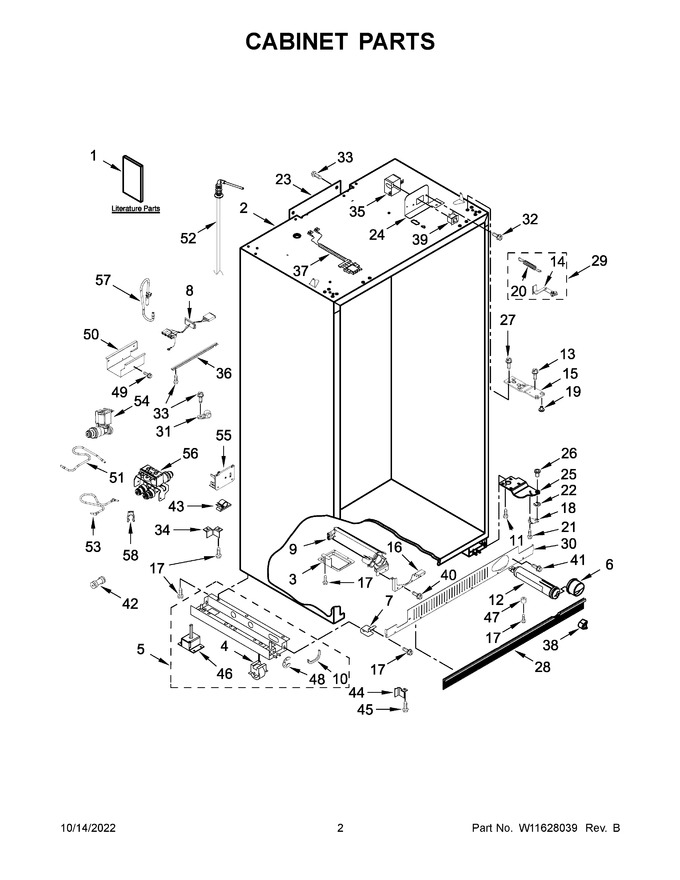

02 - Cabinet Parts


03 - Cabinet Trim Parts


04 - Refrigerator Liner Parts


05 - Freezer Liner And Air Flow Parts


06 - Icemaker And Ice Container Parts


07 - Refrigerator Shelf Parts


08 - Freezer Shelf Parts


09 - Refrigerator Door Parts


10 - Freezer Door Parts


11 - Dispenser Parts


12 - Top Grille And Unit Cover Parts


13 - Upper Unit Parts


14 - Lower Unit And Tube Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W11504344		Owner's Manual		Appelez-nous	-
2	NP		Box, Burner (not Serviced)		Appelez-nous	-
3	2318189		Tray, Filter Drip				$ 148.73
4	WPW10138054		Assembly, Roller   (Replaces: W10138054)				$ 45.34
5	W10860229		Assembly, Support Base (left Hand)   (Replaces: W10279275)				$ 381.83
6	W11238395		Cap, Water Filter (black)   (Replaces: W10797527)			Immediately	$ 50.68
7	W10839844		Bracket, Grill Mounting   (Replaces: 2307640)				$ 43.26
8	W11421923		Harness, Water Valve				$ 174.72
9	WPW10121140		Housing, Water Filter   (Replaces: W10121140)			Immediately	$ 171.96
10	2307584		Grommet, Crossover Tube				$ 23.40
11	3400525		Screw				$ 12.83
12	EDR3RXD1B		Filter, Water   (Replaces: W10121146)			Immediately	$ 49.99
13	WP8281164		Screw (stainless)   (Replaces: 8281164)				$ 11.33
14	W11298172		Arm, Door Closer Extension (left Hand)   (Replaces: W11229516)			Immediately	$ 87.43
15	2257644		Hinge, Top				$ 177.98
16	W11755873		Bracket, Filter   (Replaces: W10674648)				$ 80.33
17	WP489464		Screw   (Replaces: W10001250)			Immediately	$ 8.38
18	WP2004994		Lock, Bushing   (Replaces: 2004994)			Immediately	$ 8.39
19	W11500952		Bushing, Top Hinge   (Replaces: W10484913)			Immediately	$ 34.74
20	W11805224		Spring, Door Closure (green)   (Replaces: 2221242)		Appelez-nous	-
21	W11769878		Screw   (Replaces: 3400230)				$ 12.77
22	WP489236		Ring, Bushing Retaining   (Replaces: 2005008)			Immediately	$ 12.78
23	2215612		Cover, Air Duct		Appelez-nous	-
24	W11610480		Bracket, Switch (left Hand)				$ 76.49
25	W10527053		Hinge, Bottom (left Hand)   (Replaces: 2006779)				$ 137.73
26	WP2302876		Bushing, Adjustable   (Replaces: 2302876)			Immediately	$ 90.72
27	W11721628		Screw   (Replaces: W11370632)			Immediately	$ 14.78
28	W10859915		Skirt, Bottom Grille   (Replaces: W10188551)				$ 249.29
29	WPW10121046		Assembly, Light Switch Cam (left Hand)   (Replaces: W10121046)			Immediately	$ 83.71
30	W11739148		Grille, Bottom (black)   (Replaces: W10182718)				$ 214.59
31	W10833902		Clamp, Tube   (Replaces: 2221070)				$ 11.54
32	WP965173		Screw   (Replaces: 487415)			Immediately	$ 11.87
33	W11624204		Screw   (Replaces: 486194)				$ 14.72
34	2006617		Bracket, Base Support (rear)		Appelez-nous	-
35	W11756944		Cover, Switch   (Replaces: W11533762)		Appelez-nous	-
36	2320559		Support, Valve				$ 88.79
37	W10780213		Assembly, Switch Wire				$ 130.91
38	WP2260503B		Button, Water Filter (black)   (Replaces: 2260503B)				$ 76.42
39	W11396033		Switch, Rocker (refrigerator)   (Replaces: W10847848)			Immediately	$ 37.30
40	WP8281163		Screw (stainless)   (Replaces: 8281163)			Immediately	$ 10.70
41	WP489464		Screw   (Replaces: W10005050)			Immediately	$ 8.38
42	WP2300868		Connector, Union   (Replaces: W10271541)			Immediately	$ 29.05
43	W10663352		Clip				$ 21.91
44	2006616		Bracket, Support (left Hand)				$ 91.53
45	WPW10141604		Screw   (Replaces: W10141604)				$ 8.85
46	2005032		Leveler, Adjustable			Immediately	$ 200.07
47	2005433		Spacer				$ 23.33
48	2006841		Ring, Retainer				$ 92.66
49	WP489069		Screw   (Replaces: 304392)			Immediately	$ 8.40
50	W11439643		Shield, Water Valve				$ 125.86
51	W11634221		Tube, Water   (Replaces: W11449524)				$ 92.77
52	W11212166		Fitting, Water   (Replaces: W10357286)			Immediately	$ 40.93
53	W11663448		Tube, Water Filter   (Replaces: W11450887)				$ 57.93
54	W11246413		Valve, Isolation (no Flow Washer)   (Replaces: W10578757)			Immediately	$ 132.98
55	W10847867		Bracket, Water Valve   (Replaces: W10237915)				$ 80.75
56	WPW10279866		Assembly, Dual Valve   (Replaces: W10279866)			Immediately	$ 138.28
57	W11634223		Waterline   (Replaces: W11447812)			Immediately	$ 136.46
58	W10782424		Locking Ring (5/16)		Appelez-nous	-
14A	W10847927		Arm, Door Closer Extension (right Hand)   (Replaces: W10728112)				$ 99.91
1A	W11549877		Energy Guide		Appelez-nous	-
1B	W11494194		Tech Sheet		Appelez-nous	-
24A	W11610479		Bracket, Switch (right Hand)		Appelez-nous	-
25A	WP2006780		Hinge, Bottom (right Hand)   (Replaces: 2006780)				$ 299.33
29A	WP2307857		Assembly, Light Switch Cam (right Hand)   (Replaces: 2307857)			Immediately	$ 79.30
39A	W11291138		Switch, Rocker (freezer)   (Replaces: W10847852)			Immediately	$ 36.67
44A	2006556		Bracket, Support (right Hand)				$ 37.20
58A	W10782423		Locking Ring (1/4")				$ 24.37
5A	W10860448		Assembly, Support Base (right Hand)   (Replaces: W10138423)			Immediately	$ 383.00
