SELECT A DIAGRAM

Diagram for 01 - Cover Sheet
01 - Cover Sheet

Diagram for 02 - Cabinet Parts
02 - Cabinet Parts

Diagram for 03 - Cabinet Trim Parts
03 - Cabinet Trim Parts

Diagram for 04 - Refrigerator Liner Parts
04 - Refrigerator Liner Parts

Diagram for 05 - Freezer Liner And Air Flow Parts
05 - Freezer Liner And Air Flow Parts

Diagram for 06 - Icemaker And Ice Container Parts
06 - Icemaker And Ice Container Parts

Diagram for 07 - Refrigerator Shelf Parts
07 - Refrigerator Shelf Parts

Diagram for 08 - Freezer Shelf Parts
08 - Freezer Shelf Parts

Diagram for 09 - Refrigerator Door Parts
09 - Refrigerator Door Parts

Diagram for 10 - Freezer Door Parts
10 - Freezer Door Parts

Diagram for 11 - Dispenser Parts
11 - Dispenser Parts

Diagram for 12 - Top Grille And Unit Cover Parts
12 - Top Grille And Unit Cover Parts

Diagram for 13 - Upper Unit Parts
13 - Upper Unit Parts

Diagram for 14 - Lower Unit And Tube Parts
14 - Lower Unit And Tube Parts


New Model Search:


1-855-472-4566
< Back to Home
Keyword Search:

Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 W11173662 Trim, Cabinet Side Left Hand (aluminum)   (Replaces: W10568007) In-Stock Immediately $ 264.96

2 WPW10121451 Insert, Blind Threaded   (Replaces: W10121451) In-Stock Immediately $ 8.03

3 W11624204 Screw   (Replaces: 486194) Special Order $ 14.72

4 2314018 Trim, Top Cabinet (aluminum) Special Order $ 137.15

1A W11173663 Trim, Cabinet Side Right Hand (aluminum)   (Replaces: W10568005) Special Order $ 265.20


    View Diagram in Separate Window     Print Icon   Print Part List

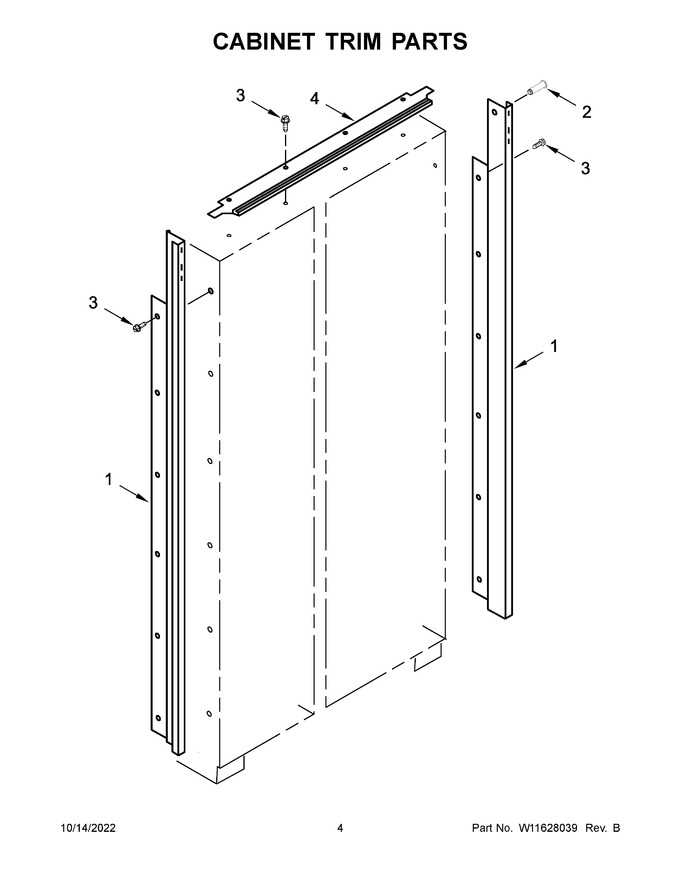

Diagram for KBSD708MSS00
