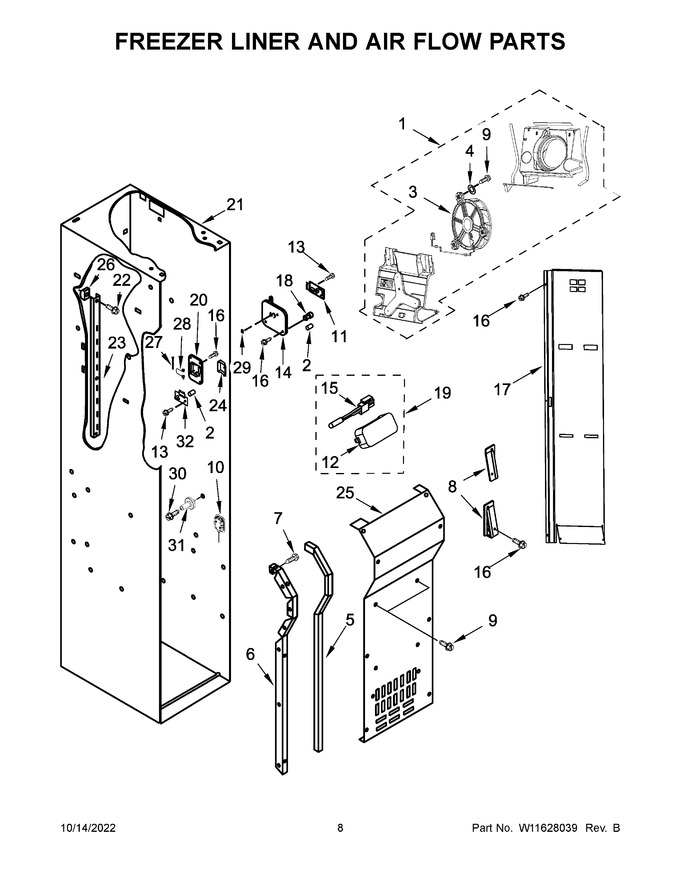

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W11631626 | Assembly, Evaporator Fan (Replaces: W11437867) |
|
Immediately | $ 275.87 | ||||
| 2 | 2198665 | Tube, Circuit Board |
|
$ 21.52 | |||||
| 3 | W11618271 | Fan, Evaporator (Replaces: W11544700) |
|
Immediately | $ 232.03 | ||||
| 4 | 3400916 | Washer |
|
- | |||||
| 5 | W11467833 | Gasket, Evaporator Cover |
|
- | |||||
| 6 | W11756941 | Rail, Evaporator Cover (left Hand) (Replaces: W11467831) |
|
- | |||||
| 7 | W11624204 | Screw (Replaces: 486194) |
|
$ 14.72 | |||||
| 8 | W11447235 | Wedge, Air Duct (left Hand) |
|
- | |||||
| 9 | WP488729 | Screw (stainless) (Replaces: 487539) |
|
Immediately | $ 8.28 | ||||
| 10 | W11484836 | Assembly, Led Module (Replaces: W11229041) |
|
Immediately | $ 27.01 | ||||
| 11 | W11629974 | Board, Receiver Circuit (Replaces: W11553041) |
|
Immediately | $ 421.12 | ||||
| 12 | W10609678 | Cover, Thermistor |
|
$ 39.19 | |||||
| 13 | 2006254 | Screw (Replaces: 489214) |
|
$ 13.79 | |||||
| 14 | W11603662 | Cover, Receiver |
|
- | |||||
| 15 | WP2188820 | Thermistor (Replaces: 2188820) |
|
Immediately | $ 30.85 | ||||
| 16 | WP98008545 | Screw (black) (Replaces: W10308487) |
|
$ 18.60 | |||||
| 17 | W11410845 | Duct, Air |
|
- | |||||
| 18 | WP2198643 | Lens, Receiver (Replaces: 2198643) |
|
$ 8.59 | |||||
| 19 | W11625042 | Assembly, Thermistor (Replaces: W11550866) |
|
Immediately | $ 66.74 | ||||
| 20 | W11631334 | Cover, Emitter (Replaces: W11603485) |
|
$ 66.07 | |||||
| 21 | NP | Box, Burner (not Serviced) |
|
- | |||||
| 22 | W10808291 | Screw |
|
- | |||||
| 23 | W11625043 | Ladder, Shelf (Replaces: W11481390) |
|
- | |||||
| 24 | W11631335 | Flipper, Shut Off (Replaces: W11597100) |
|
- | |||||
| 25 | W11444470 | Cover, Evaporator |
|
- | |||||
| 26 | 520965 | Support, Ladder |
|
$ 31.35 | |||||
| 27 | WP2198634 | Pin, Door (Replaces: 2198634) |
|
$ 18.65 | |||||
| 28 | WP2198635 | Spring, Door (Replaces: 2198635) |
|
$ 91.43 | |||||
| 29 | W11603482 | Slide, Icemaker Shut Off |
|
- | |||||
| 30 | W10191952 | Screw |
|
$ 5.65 | |||||
| 31 | W11627395 | Assembly, Shelf Stud (Replaces: W11445126) |
|
- | |||||
| 32 | W11629974 | Board, Emitter Circuit (Replaces: W11553040) |
|
Immediately | $ 421.12 | ||||
| 6A | W11756942 | Rail, Evaporator Cover (right Hand) (Replaces: W11467830) |
|
- | |||||
| 8A | W11447234 | Wedge, Air Duct (right Hand) |
|
- |
