01 - Cover Sheet

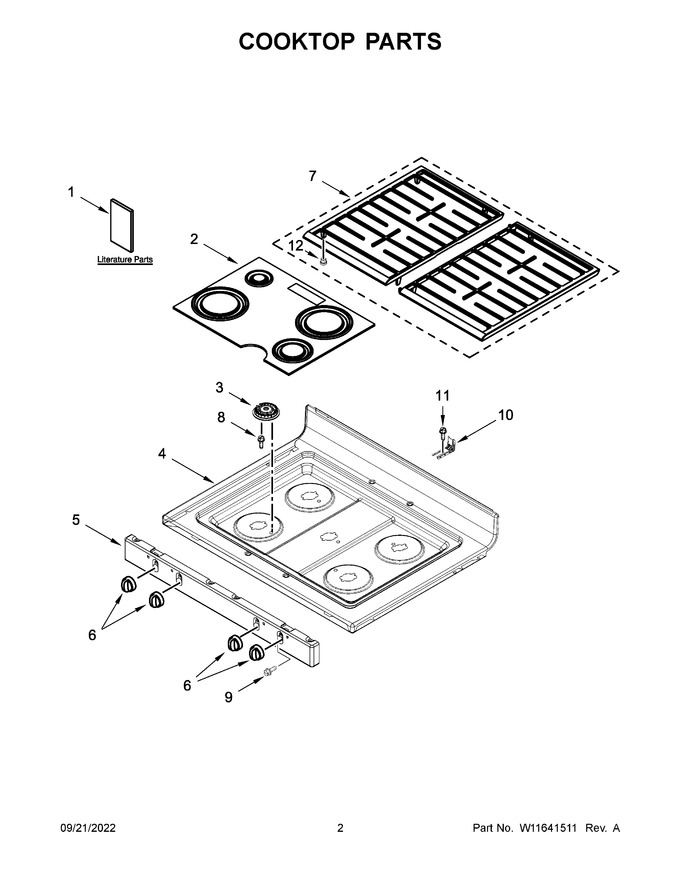

02 - Cooktop Parts
03 - Control Panel Parts
04 - Chassis Parts
05 - Manifold Parts
06 - Door Parts
07 - Drawer Parts
08 - Optional Parts (not Included)
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W11426600 | Owner's Manual |
|
- | |||||
| 2 | W11455147 | Burner Cap Kit (black (set Of 4)) (Replaces: W11395131) |
|
Immediately | $ 99.73 | ||||
| 3 | W11435630 | Spreader, Flame (left Front & Right Front) (Replaces: W11352018) |
|
Immediately | $ 82.12 | ||||
| 4 | W11455651 | Cooktop (black) (Replaces: W11418089) |
|
$ 420.40 | |||||
| 5 | W11244426 | Panel, Manifold (black) (Replaces: W11089575) |
|
- | |||||
| 6 | W11620557 | Knob, Control (black) (Replaces: W11510457) |
|
- | |||||
| 7 | W11832970 | Kit, Grate (set Of 2) (black) (Replaces: W11465357) |
|
$ 280.94 | |||||
| 8 | W11241230 | Screw (Replaces: W10673618) |
|
Immediately | $ 14.73 | ||||
| 9 | WP3196557 | Screw (Replaces: 3196557) |
|
Immediately | $ 7.95 | ||||
| 10 | W11839019 | Bracket, Anti-tip (Replaces: W11379945) |
|
Immediately | $ 28.54 | ||||
| 11 | 7101P48560 | Screw, Anti-tip Kit |
|
- | |||||
| 12 | W10919249 | Grate, Bumper (Replaces: W10465081) |
|
Immediately | $ 13.18 | ||||
| 1A | W11402529 | Tech Sheet |
|
- | |||||
| 1B | W11427476 | Quick Start Guide |
|
- | |||||
| 3A | W11435659 | Spreader, Flame (left Rear) (Replaces: W11352020) |
|
$ 84.85 | |||||
| 3B | W11435657 | Spreader, Flame (right Rear) (Replaces: W11352021) |
|
$ 84.43 | |||||
| 4A | W11477952 | Cooktop (white) (Replaces: W11418090) |
|
$ 420.79 | |||||
| 5A | W11246787 | Panel, Manifold (white) (Replaces: W11089574) |
|
$ 251.12 | |||||
| 6A | W11620575 | Knob, Control (white) (Replaces: W11510458) |
|
$ 45.03 | |||||
| NI | W10334923 | Clip, Gas Wiring |
|
- | |||||
| NI | 3400964 | Clip, Wire (Replaces: 3196520) |
|
$ 89.00 | |||||
| NI | 3196896 | Clip, Wire |
|
- | |||||
| NI | W11244557 | Screw (Replaces: 3196173) |
|
$ 14.29 | |||||
| NI | W11645866 | Harness, Bake/broil (Replaces: W11450461) |
|
$ 38.49 | |||||
| NI | NP | Cabinet (not A Servicable Part) |
|
- | |||||
| NI | W11457167 | Harness, Main |
|
- | |||||
| NI | 16515 | Clip, Harness (Replaces: 313438) |
|
$ 20.53 |
