SELECT A DIAGRAM

01 - Cover Sheet


02 - Cooktop Parts


03 - Control Panel Parts


04 - Chassis Parts

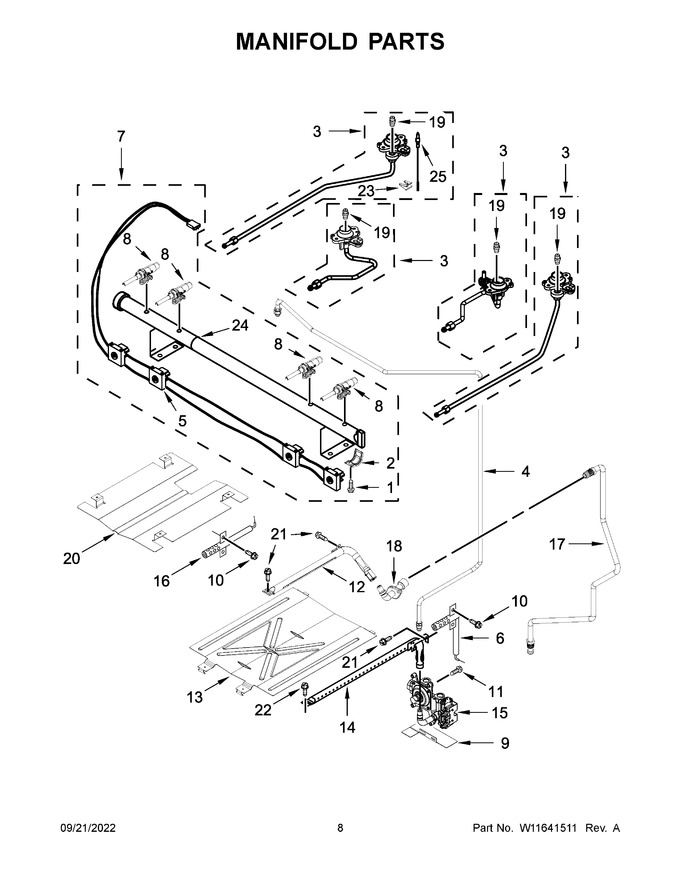

05 - Manifold Parts


06 - Door Parts


07 - Drawer Parts


08 - Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W11577792		Screw, Valve		Appelez-nous	-
2	W10949105		Bracket, Saddle Valve				$ 21.67
3	W11562501		Orifice Holder Assembly (15k) (left Front)   (Replaces: W11459257)				$ 97.87
4	W11680399		Tubing (manifold To Regulator)   (Replaces: W10215439)				$ 146.27
5	W11701337		Harness, Switch   (Replaces: W11537750)		Appelez-nous	-
6	W11524031		Electrode, Bake   (Replaces: W11450459)			Immediately	$ 56.90
7	W11510001		Manifold Assembly		Appelez-nous	-
8	W11759109		Valve, Gas (left Front & Right Front)   (Replaces: W11509685)		Appelez-nous	-
9	W10224921		Bracket, Aegis		Appelez-nous	-
10	W11684507		Screw   (Replaces: 3196385)				$ 13.59
11	WP3400016		Screw   (Replaces: 3400016)				$ 7.95
12	WP8054078		Burner, Broiler   (Replaces: 8054078)				$ 227.96
13	WPW10184491		Spreader, Flame (oven)   (Replaces: W10184491)				$ 241.45
14	WP9758078		Burner, Bake   (Replaces: 9758078)				$ 215.30
15	W11449506		Regulator   (Replaces: W11370883)				$ 201.69
16	WPW10333842		Electrode, Broil   (Replaces: W10333842)			Immediately	$ 85.81
17	W10420040		Tube, Broiler Supply				$ 185.29
18	W11435700		Fitting, Broiler				$ 85.11
19	W11700316		Orifice (15k) (left Front & Right Front)   (Replaces: W11485872)				$ 15.93
20	W10137062		Spreader, Flame (broiler)		Appelez-nous	-
21	3196265		Screw		Appelez-nous	-
22	W11233072		Screw   (Replaces: W10362924)			Immediately	$ 14.02
23	W11684564		Electrode, Spring   (Replaces: W10827923)			Immediately	$ 11.90
24	WPW10182767		Tie, Manifold Wire   (Replaces: W10182767)				$ 6.95
25	W11453940		Electrode (left Front, Left Rear)   (Replaces: W11428831)				$ 61.39
19A	W11485873		Orifice (9.5k) (left Rear)				$ 65.70
19B	W11428753		Orifice (15k) (right Front)			Immediately	$ 79.30
19C	W11712434		Orifice (5k) (right Rear)   (Replaces: W11485871)				$ 15.93
25A	W11453920		Electrode (right Front, Right Rear, Center)   (Replaces: W11428858)				$ 61.29
3A	W11557815		Orifice Holder Assembly (9.5k) (left Rear)   (Replaces: W11459258)		Appelez-nous	-
3B	W11557816		Orifice Holder Assembly (15k) (right Front)   (Replaces: W11459260)				$ 101.60
3C	W11557817		Orifice Holder Assembly (5k)(right Rear)   (Replaces: W11459259)		Appelez-nous	-
8A	W11509686		Valve, Gas (left Rear, Center)		Appelez-nous	-
8B	W11509687		Valve,gas (right Rear)				$ 95.32
NI	NP		Cabinet (not A Servicable Part)		Appelez-nous	-
NI	W11569688		Lp Conversion Kit   (Replaces: W11489400)				$ 70.31
NI	W10758273		Orifice, Lp Broil   (Replaces: W10465080)				$ 8.12
NI	W11126051		Lp Bake And Broil Kit   (Replaces: W10566537)				$ 122.89
NI	WPW10400495		Orifice, Lp Bake   (Replaces: W10400495)				$ 89.83

    View Diagram in Separate Window       Print Part List
