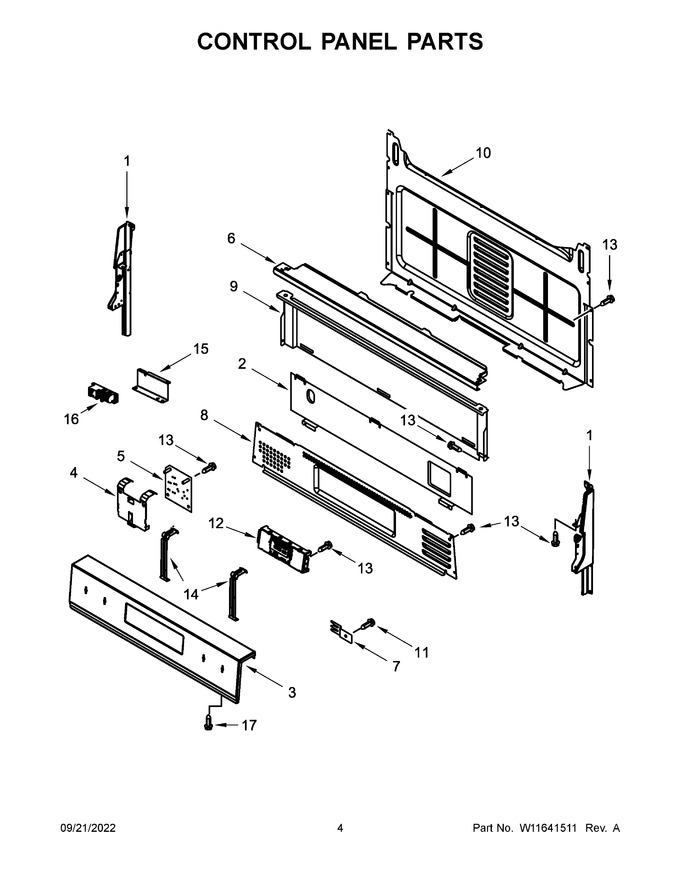

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W11219664 | Endcap (black (left)) (Replaces: W11130372) |
|
$ 146.50 | |||||
| 2 | 8053505 | Shield, Heat |
|
$ 157.99 | |||||
| 3 | W11101498 | Panel, Control (black) (Replaces: W10885611) |
|
- | |||||
| 4 | W10762981 | Bracket, Mounting |
|
$ 72.78 | |||||
| 5 | W11162730 | Module, Spark Dsi (Replaces: W10920631) |
|
Immediately | $ 218.43 | ||||
| 6 | W10516123 | Bracket, Console Mounting |
|
- | |||||
| 7 | 8523412 | Bracket, Rear Cooktop |
|
$ 159.90 | |||||
| 8 | W10198745 | Cover, Upper |
|
$ 122.76 | |||||
| 9 | W10192841 | Shield, Heat |
|
$ 101.61 | |||||
| 10 | W10184370 | Cover, Back |
|
- | |||||
| 11 | WP3196557 | Screw (Replaces: 3196169) |
|
Immediately | $ 7.95 | ||||
| 12 | W11620559 | Control, Range (lcc190) (black) (Replaces: W11520699) |
|
$ 355.82 | |||||
| 13 | W11233072 | Screw (Replaces: 3196178) |
|
Immediately | $ 14.02 | ||||
| 14 | W11230932 | Bracket, Control (Replaces: W10695491) |
|
Immediately | $ 80.77 | ||||
| 15 | W10901176 | Bracket, Ignitor (Replaces: W10797001) |
|
- | |||||
| 16 | WPW10110491 | Module, Spark (Replaces: W10110488) |
|
Immediately | $ 307.06 | ||||
| 17 | WP3196175 | Screw (Replaces: 3196165) |
|
Immediately | $ 7.19 | ||||
| 12A | W11620724 | Control, Range (lcc190) (white) (Replaces: W11520697) |
|
$ 355.58 | |||||
| 1A | W11219365 | Endcap (white (left)) (Replaces: W11130371) |
|
$ 40.43 | |||||
| 1B | W11219665 | Endcap (black (right)) (Replaces: W11130379) |
|
$ 40.44 | |||||
| 1C | W11219370 | Endcap (white (right)) (Replaces: W11130378) |
|
$ 57.93 | |||||
| 3A | W11101500 | Panel, Control (white) (Replaces: W10885610) |
|
$ 318.21 |
