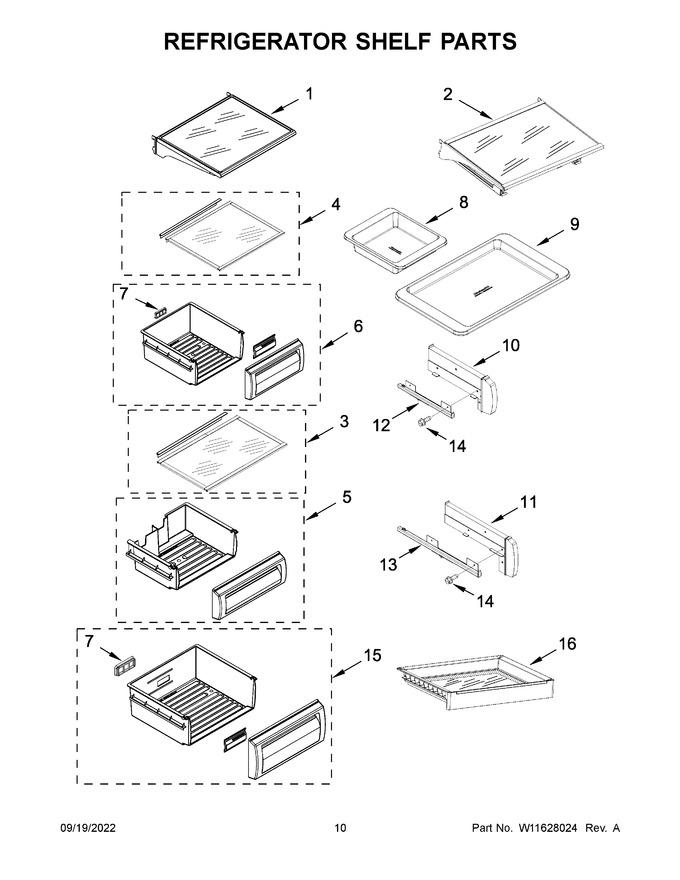

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W11630863		Assembly, Shelf   (Replaces: W11410512)				$ 194.75
2	W11630864		Assembly, Bakeware Shelf   (Replaces: W11408074)				$ 361.92
3	W11630862		Assembly, Meat Pan Cover   (Replaces: W11441724)		Appelez-nous	-
4	W11630861		Assembly, Crisper Cover   (Replaces: W11441726)		Appelez-nous	-
5	W11448427		Assembly, Meat Pan		Appelez-nous	-
6	W11448662		Assembly, Crisper Pan		Appelez-nous	-
7	2307810		Duct, Deli Pan		Appelez-nous	-
8	W11633366		Pan, Cake   (Replaces: W11522384)				$ 72.22
9	W11633367		Sheet, Baking   (Replaces: W11522386)				$ 70.51
10	W11410122		Spacer, Crisper (left Hand)		Appelez-nous	-
11	W11410124		Spacer, Meat Pan (left Hand)		Appelez-nous	-
12	2302956		Slider, Crisper (left Hand)				$ 298.73
13	2302954		Slide, Meat Pan (left Hand)				$ 343.49
14	WP8533928		Screw   (Replaces: 8533928)			Immediately	$ 8.26
15	W11626770		Pan, Cool Control Crisper   (Replaces: W11482032)		Appelez-nous	-
16	W11631250		Assembly, Platter Shelf   (Replaces: W11611418)				$ 414.64
10A	W11410123		Spacer, Crisper (right Hand)		Appelez-nous	-
11A	W11410125		Spacer, Meat Pan (right Hand)		Appelez-nous	-
12A	2302957		Slider, Crisper (right Hand)				$ 228.33
13A	2302955		Slide, Meat Pan (right Hand)				$ 343.18
14A	W11830745		Screw   (Replaces: 8533929)		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
