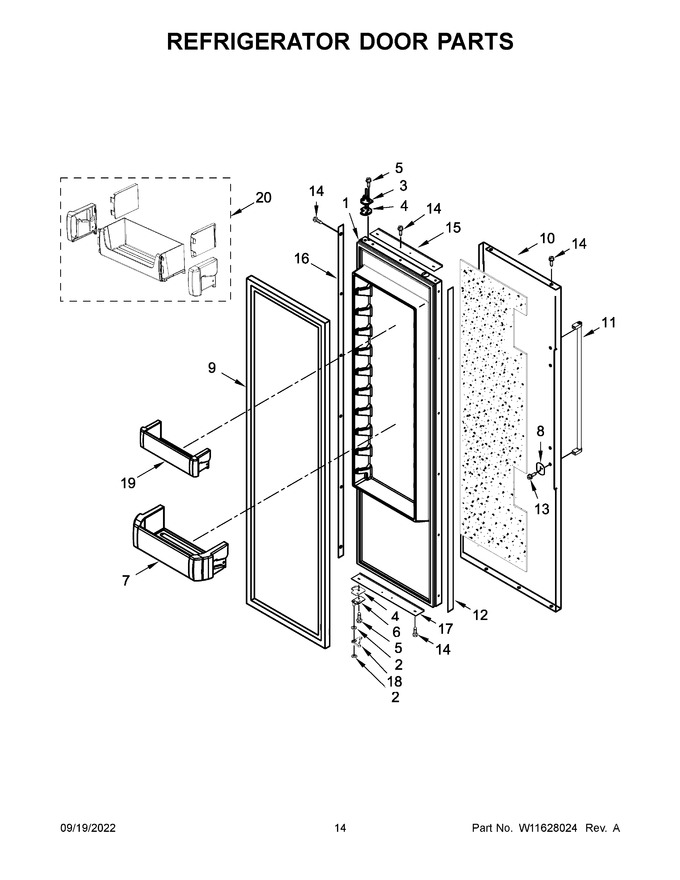

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W11633393 | Door, Refrigerator (Replaces: W11576682) |
|
Immediately | $ 1,448.23 | ||||
| 2 | WP2006346 | Washer, Extension Arm (Replaces: 2006346) |
|
Immediately | $ 11.76 | ||||
| 3 | W11673500 | Assembly, Hinge (top) (Replaces: W11414335) |
|
Immediately | $ 108.07 | ||||
| 4 | W11673500 | Spacer, Door Hinge Bottom (Replaces: 2316804) |
|
Immediately | $ 108.07 | ||||
| 5 | W11474472 | Screw (Replaces: W10162602) |
|
Immediately | $ 8.63 | ||||
| 6 | 2302878 | Assembly, Hinge (bottom) |
|
Immediately | $ 91.01 | ||||
| 7 | W11408929 | Bin, Gallon Door |
|
$ 183.44 | |||||
| 8 | W10127710 | Plate, Handle Door |
|
Immediately | $ 25.94 | ||||
| 9 | W11627244 | Gasket, Door (grey) (Replaces: W10764832) |
|
$ 377.97 | |||||
| 10 | W11797613 | Skin, Door (black Stainless) (Replaces: W10872934) |
|
- | |||||
| 11 | W10783284 | Handle, Door (stainless) (Replaces: W10541592) |
|
$ 216.71 | |||||
| 12 | W10758113 | Spacer, Handle Side Door |
|
- | |||||
| 13 | WP308544 | Screw (Replaces: 308544) |
|
Immediately | $ 8.30 | ||||
| 14 | W10851443 | Screw (black) (Replaces: 8281252) |
|
Immediately | $ 8.13 | ||||
| 15 | W10761896 | Spacer, Door Skin (top) |
|
- | |||||
| 16 | W10756209 | Spacer, Hinge Side Door |
|
- | |||||
| 17 | W10761936 | Spacer, Door Skin Bottom |
|
- | |||||
| 18 | W11700297 | Cover, Bottom Gap (Replaces: W10482554) |
|
Immediately | $ 38.28 | ||||
| 19 | W11408937 | Bin, Shallow Door |
|
$ 181.95 | |||||
| 20 | W11631253 | Assembly, Top Door Bin (Replaces: W11610620) |
|
$ 137.24 | |||||
| 10A | W11797630 | Skin, Door (stainless) Filler (not Serviced-included With Skin) (Replaces: W10756461) |
|
- | |||||
| 14A | WP8281250 | Screw (stainless) (Replaces: 8281250) |
|
$ 11.42 |
