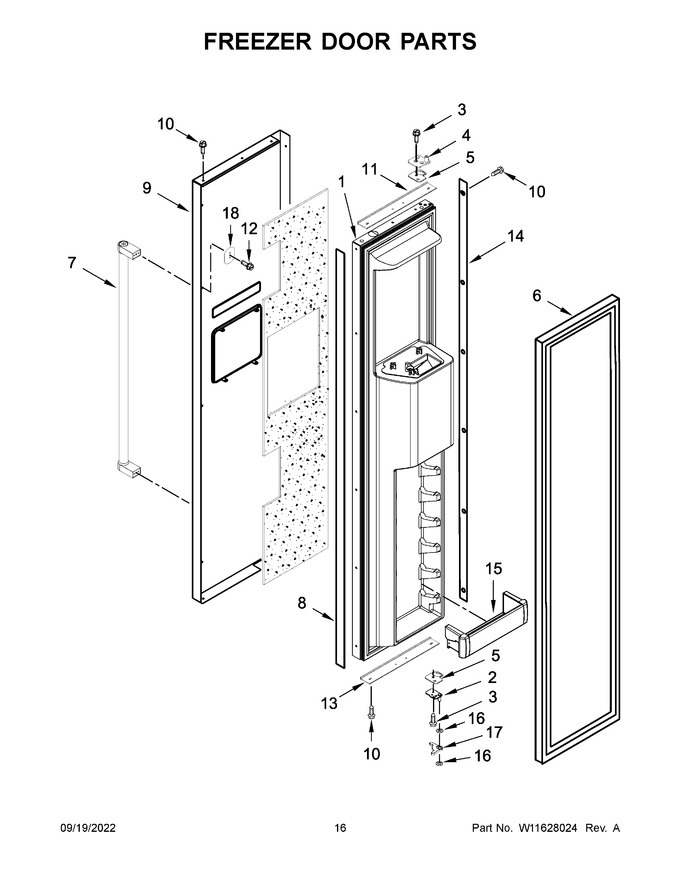

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W11827064		Door, Freezer   (Replaces: W11570422)		Appelez-nous	-
2	W11752085		Assembly, Hinge (bottom)   (Replaces: 2302879)				$ 63.07
3	W11474472		Screw   (Replaces: W10162602)			Immediately	$ 8.63
4	W11673500		Assembly, Hinge (top)   (Replaces: W11414335)			Immediately	$ 108.07
5	W11673500		Spacer, Door Hinge Bottom   (Replaces: 2316804)			Immediately	$ 108.07
6	W11625082		Gasket, Door (grey)   (Replaces: W10761964)				$ 380.50
7	W10783284		Handle, Door (stainless)   (Replaces: W10541592)				$ 216.71
8	W10758113		Spacer, Handle Side Door		Appelez-nous	-
9	W11797610		Skin, Door (black Stainless)   (Replaces: W10873342)		Appelez-nous	-
10	W10851443		Screw (black)   (Replaces: 8281252)			Immediately	$ 8.13
11	W10758117		Spacer, Door Skin (top)		Appelez-nous	-
12	WP308544		Screw   (Replaces: 308544)			Immediately	$ 8.30
13	W10758140		Spacer, Door Skin (bottom)		Appelez-nous	-
14	W10756209		Spacer, Hinge Side Door		Appelez-nous	-
15	W11408939		Bin, Shallow Door			Immediately	$ 181.06
16	WP2006346		Washer, Extension Arm   (Replaces: 2006346)			Immediately	$ 11.76
17	W11700297		Cover, Bottom Gap   (Replaces: W10482554)			Immediately	$ 38.28
18	W10127710		Plate, Handle Door			Immediately	$ 25.94
10A	WP8281250		Screw (stainless)   (Replaces: 8281250)				$ 11.42
9A	W11797633		Skin, Door (stainless) Filler (not Serviced-included With Skin))   (Replaces: W10756225)		Appelez-nous	-
