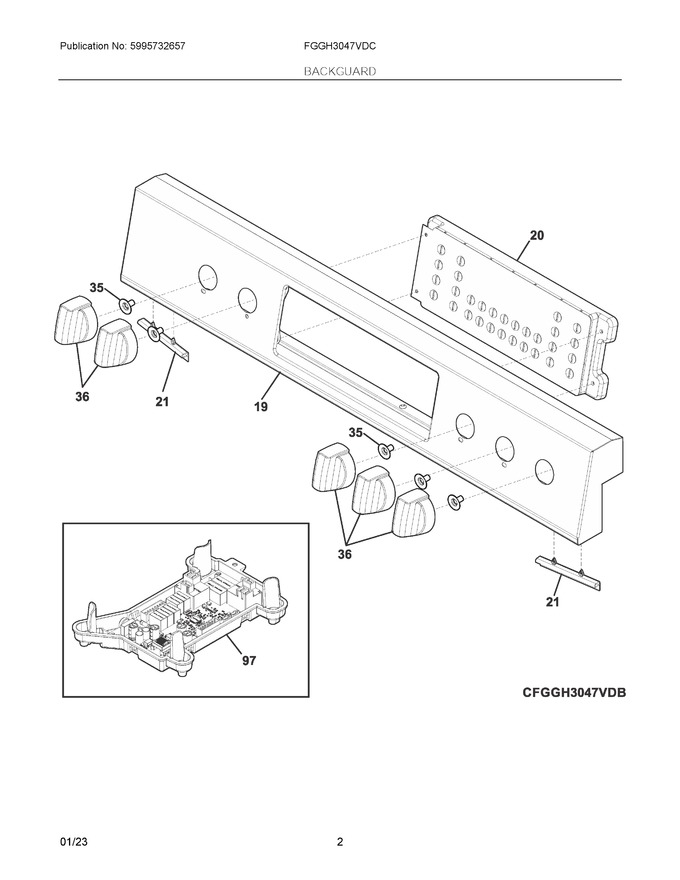

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 19 | 5304518006 | Control Panel, Front, Blk Stnlss |
|
$ 295.93 | |||||
| 20 | 5304524332 | Control, Black, Es501g |
|
Immediately | $ 390.31 | ||||
| 21 | 5304521021 | Seal, Control Panel |
|
$ 30.38 | |||||
| 35 | 5304508440 | Bushing, Insulating |
|
Immediately | $ 12.64 | ||||
| 36 | 5304521002 | Knob, Top Valve, Stainless |
|
$ 94.37 | |||||
| 97 | 5304516862 | Board, Pc, Oven Relay |
|
Immediately | $ 367.41 | ||||
| NI | 5304520393 | Spacer, Foam Block, 2" X 1", W/adhesive |
|
- | |||||
| NI | 316519700 | Screw, Cup Pt, 8-18 X 0.375, Chrome (Replaces: 316021108) |
|
$ 11.13 | |||||
| NIA | 5303289910 | Screw, Truss Sqdr, 8a X 1", 62* |
|
$ 6.30 | |||||
| NIA | 316021109 | Screw, 8-18 X 0.5, Chrome |
|
Immediately | $ 30.55 |
