SELECT A DIAGRAM

01 - Cover Sheet


02 - Backguard


03 - Burner


04 - Body

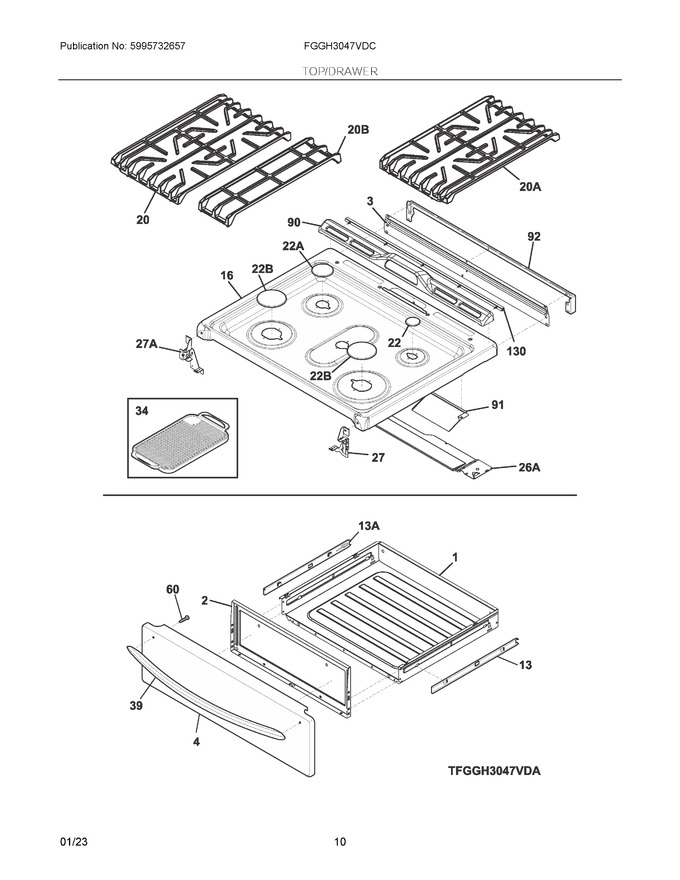

05 - Top/drawer


06 - Door


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	807108405		Drawer, Warmer				$ 139.38
2	5304527988		Liner, Drawer			Immediately	$ 29.49
3	5304514133		Shield, Rear Wall, Upper				$ 38.77
4	5304517133		Panel, Drawer, Black Stainless				$ 215.54
13	316415000		Glide, Warmer, Inner Rh				$ 65.36
16	5304520919		Maintop, Assembly, Black				$ 223.29
20	5304521077		Grate, Burner, Black, Rh Side				$ 236.32
22	5304520370		Cap, Burner, Small, Black			Immediately	$ 17.36
27	5304514123		Bracket, Mounting, Rh, Cooktop				$ 15.17
34	5304495353		Griddle			Immediately	$ 185.38
39	5304518030		Handle, Door/drawer, Black Stainless				$ 175.11
60	5303288572		Screw-handle Mtg		Appelez-nous	-
90	5304514122		Trim, Vent, Black, Rear				$ 60.67
91	5304514181		Deflector, Moisture, (2)				$ 11.81
92	5304520261		Rear Filler Kit, Fcfs Range, Black			Immediately	$ 182.01
130	808931802		Seal, Maintop, Silicone, Rear				$ 44.66
13A	316415001		Glide, Warmer, Inner Lh			Immediately	$ 65.36
20A	5304521078		Grate, Burner, Black, Lh Side				$ 218.24
20B	5304521079		Grate, Burner, Black, Center				$ 224.14
22A	5304520371		Cap, Burner, Medium, Black			Immediately	$ 21.91
22B	5304520372		Cap, Burner, Large, Black			Immediately	$ 25.28
26A	5304514126		Bracket, Support, Rear, Chassis		Appelez-nous	-
27A	5304514124		Bracket, Mounting, Lh, Cooktop				$ 15.17
NI	316021109		Screw, 8-18 X 0.5, Chrome			Immediately	$ 30.55
NI	316089500		Screw, 10-16 X .486				$ 14.96
NI	5303285179		Screw, Wafer Head, 8-32t X 0.500, Black, 44*				$ 14.96
NI	316021109		Screw, Hex Head Cup Pt, 8-18 X 0.375, Black   (Replaces: 316021105)			Immediately	$ 30.55
