SELECT A DIAGRAM

01 - Cover Sheet


02 - Backguard


03 - Burner


04 - Body


05 - Top/drawer


06 - Door

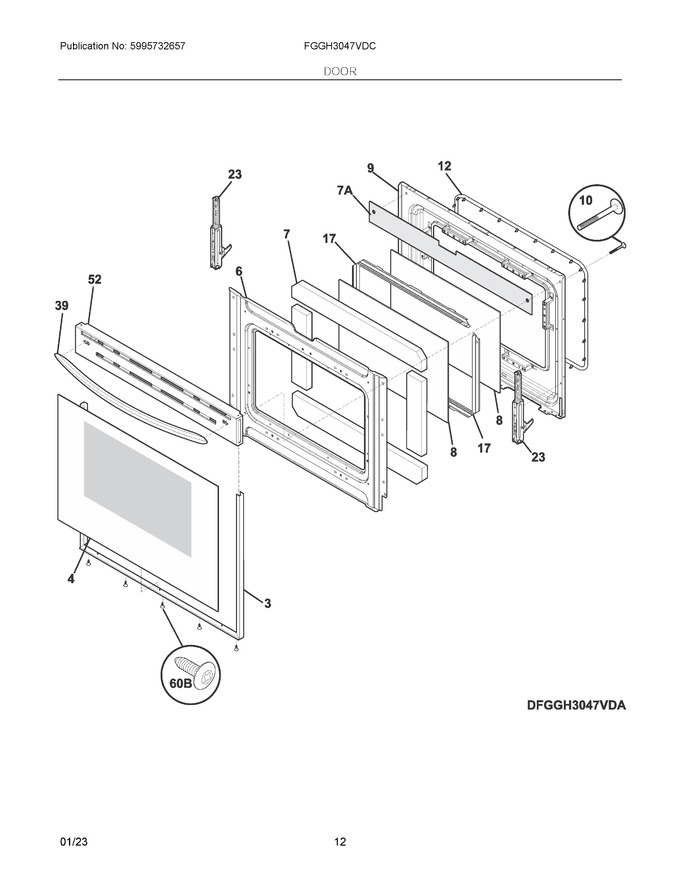

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
3	5303935378		Trim Kit-door, 3 Sided, Black, W/tape			Immediately	$ 70.09
4	316355501		Glass Assembly, Door, Black, Outer, W/foil			Immediately	$ 285.42
6	316402316		Shield, Wool			Immediately	$ 98.58
7	316403900		Insulation, Oven Door			Immediately	$ 80.33
8	5304503232		Glass, Oven Door, Inner   (Replaces: 316117506)				$ 129.94
9	316423814		Liner, Oven Door				$ 180.33
10	5304507924		Screw, Handle Mtg, 10-24 X 2.188, (2)   (Replaces: 316513301)			Immediately	$ 18.31
12	5304498835		Seal, Oven Door			Immediately	$ 98.60
17	5304504811		Spacer, Glass			Immediately	$ 27.80
23	5304521043		Hinge, Door, Orange, Dual Spring			Immediately	$ 94.37
39	5304518030		Handle, Door/drawer, Black Stainless				$ 175.11
52	5304532496		Door Cap, Assembly, Black Stainless, Insul & Spacers   (Replaces: 5304518017)		Appelez-nous	-
60B	316021109		Screw, 8-18 X 0.5, Chrome			Immediately	$ 30.55
7A	5304518033		Insulation, Door Liner, Top				$ 50.56
NI	316483102		Label, Anti-tip				$ 3.95
NIA	316418900		Screw, Sims Lp, #8-32 X 5/16", Black				$ 15.75

    View Diagram in Separate Window       Print Part List
