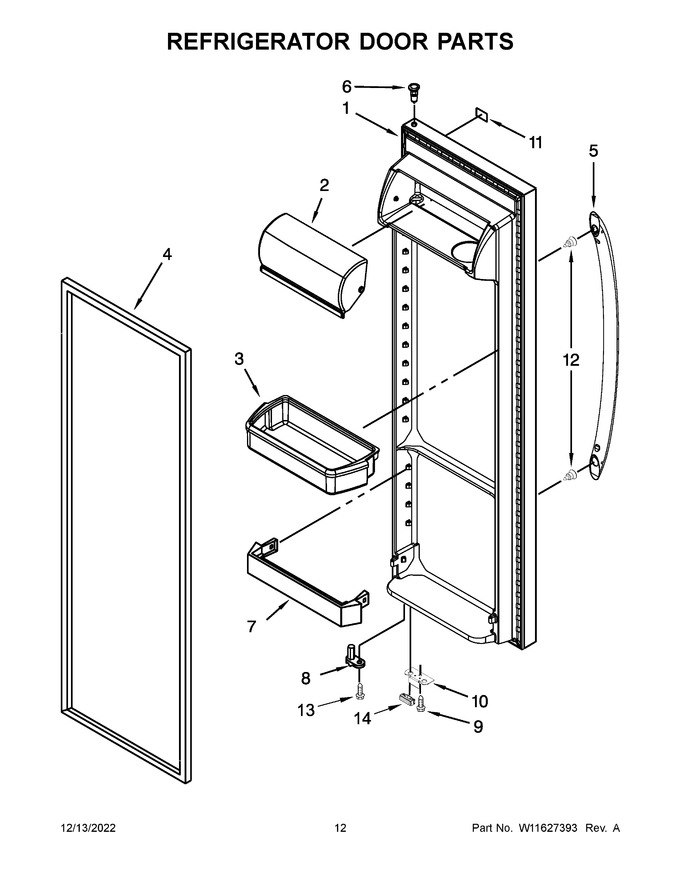

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | LW10912118 | Door, Refrigerator (includes Door Gasket) (white) (Replaces: W10912118) |
|
$ 867.22 | |||||
| 2 | WP2256101 | Door, Compartment (Replaces: 2256101) |
|
Immediately | $ 89.42 | ||||
| 3 | W11174793 | Bin, Door (Replaces: W11034658) |
|
$ 161.02 | |||||
| 4 | 2159074 | Gasket, Door (beige) (Replaces: W10912123) |
|
$ 325.70 | |||||
| 5 | W10210942A | Handle (white) (Replaces: W10210942) |
|
$ 129.53 | |||||
| 6 | WP2182181 | Thimble (Replaces: 2200087) |
|
$ 8.15 | |||||
| 7 | WP2309941 | Trivet (Replaces: 2309941) |
|
Immediately | $ 76.32 | ||||
| 8 | W11397972 | Thimble, Cam (Replaces: W10900464) |
|
$ 13.79 | |||||
| 9 | WP489483 | Screw (Replaces: 489420) |
|
$ 11.41 | |||||
| 10 | W11557261 | Bracket, Door Stop (black) (Replaces: W10900463) |
|
Immediately | $ 18.67 | ||||
| 11 | W11428492 | Nameplate (badge) (Replaces: W11046244) |
|
$ 83.57 | |||||
| 12 | WPW10288153 | Screw (Replaces: W10288153) |
|
Immediately | $ 9.65 | ||||
| 13 | WPW10142283 | Screw (white) (Replaces: W10142283) |
|
$ 10.33 | |||||
| 14 | W11687672 | Bumper, Door (white) (Replaces: W10407175) |
|
$ 14.93 | |||||
| 11A | W11318226 | Nameplate (black) (Replaces: W11046243) |
|
$ 84.37 | |||||
| 11B | W11182143 | Nameplate (stainless) (Replaces: W11046241) |
|
$ 80.27 | |||||
| 13A | WP98008545 | Screw (black) (Replaces: W10308487) |
|
$ 18.60 | |||||
| 14A | W10407187 | Bumper, Door (black) |
|
$ 48.34 | |||||
| 1A | LW10912126 | Door, Refrigerator (includes Door Gasket) (black) (Replaces: W10912126) |
|
$ 847.07 | |||||
| 1B | LW11156545 | Door, Refrigerator (includes Door Gasket) (stainless) (Replaces: W11156545) |
|
- | |||||
| 4A | 2159082 | Gasket, Door (black) (Replaces: W10912133) |
|
$ 332.49 | |||||
| 5A | W10210942A | Handle (black) (Replaces: W10210943) |
|
$ 129.53 | |||||
| 5B | WPW10257120 | Handle (grey) (Replaces: W10257120) |
|
$ 59.70 |
