SELECT A DIAGRAM

01 - Cover Sheet


02 - Cabinet Parts


03 - Refrigerator Liner Parts


04 - Refrigerator Shelf Parts


05 - Freezer Liner Parts


06 - Motor And Ice Container Parts


07 - Refrigerator Door Parts


08 - Freezer Door Parts


09 - Dispenser Parts


10 - Air Flow Parts


11 - Unit Parts


12 - Optional Parts

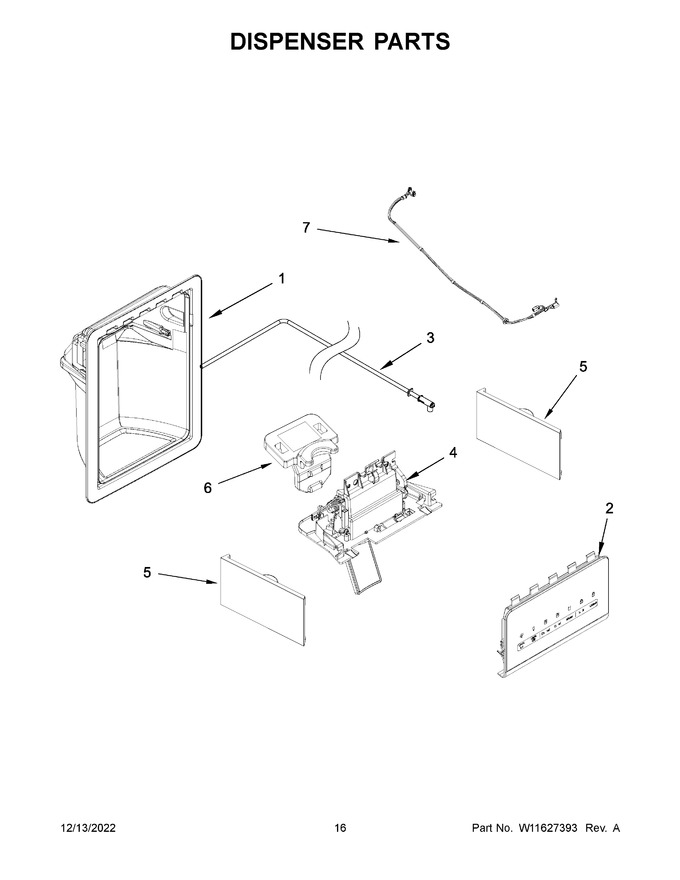

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	NP		Following Parts Not Illustrated		Appelez-nous	-
2	W11216949		Assembly, User Interface (includes Light Feature) (black)   (Replaces: W10922069)				$ 436.04
3	W11163765		Assembly, Water Fitting   (Replaces: W10898317)			Immediately	$ 166.06
4	W11423789		Assembly, Separator (white)   (Replaces: W11355300)				$ 166.51
5	W11311797		Front Cover, Dispenser (white (left Hand))   (Replaces: W11183318)		Appelez-nous	-
6	W11397167		Retainer, Separator Hose   (Replaces: W11039857)			Immediately	$ 23.34
7	W10898319		Harness, Wire				$ 150.84
4A	W11678840		Assembly, Separator (black)   (Replaces: W11355299)				$ 191.13
5A	W11311798		Front Cover, Dispenser (white (right Hand))   (Replaces: W11183314)		Appelez-nous	-
5B	W11311800		Front Cover, Dispenser (black (right Hand))   (Replaces: W11183313)			Immediately	$ 106.31
5C	W11311799		Front Cover, Dispenser (black (left Hand))   (Replaces: W11183317)				$ 102.72

    View Diagram in Separate Window       Print Part List
