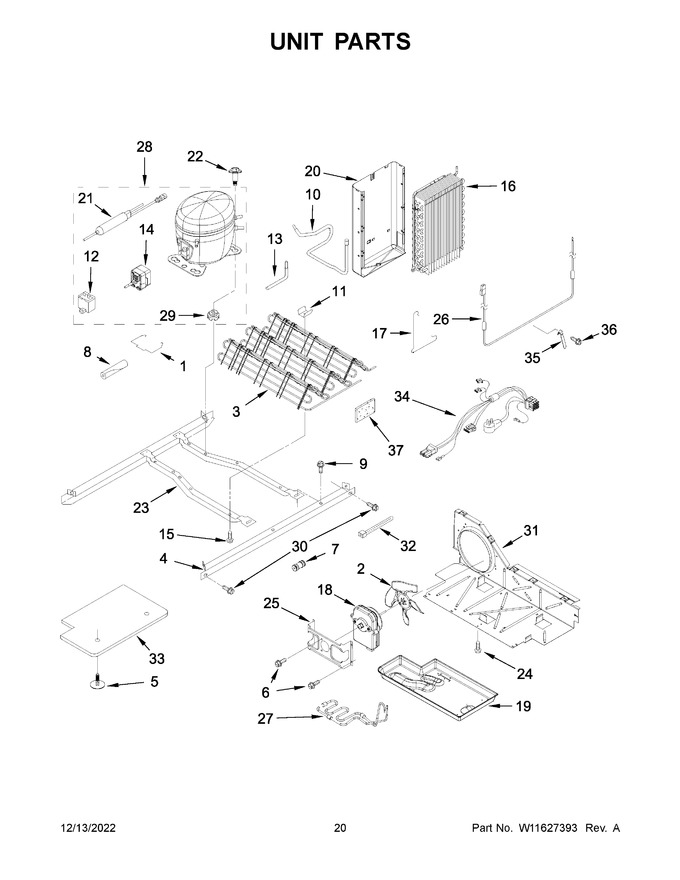

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W11577799 | Strap, Bale (Replaces: W11495051) |
|
- | |||||
| 2 | W11458267 | Blade, Fan (also Order The Following Lokring Parts) (Replaces: 2225834) |
|
Immediately | $ 25.19 | ||||
| 3 | W11632924 | Assembly, Condenser (Replaces: W11553540) |
|
Immediately | $ 237.55 | ||||
| 4 | W10900442 | Rail, Unit Mounting |
|
- | |||||
| 5 | 489396 | Clip |
|
$ 11.26 | |||||
| 6 | WP8533993 | Screw (Replaces: 8533993) |
|
$ 11.21 | |||||
| 7 | WP2300868 | Connector, Union (Replaces: W10271541) |
|
Immediately | $ 29.05 | ||||
| 8 | W11751592 | Sleeve (Replaces: 2161302) |
|
Immediately | $ 21.32 | ||||
| 9 | WP489427 | Screw (Replaces: 489427) |
|
$ 7.84 | |||||
| 10 | W11386791 | Tube, Suction |
|
- | |||||
| 11 | W10683556 | Clip, Condenser (Replaces: 2311725) |
|
$ 19.38 | |||||
| 12 | WPW10662129 | Capacitor (Replaces: W10590083) |
|
Immediately | $ 58.86 | ||||
| 13 | 2325479 | Tube, Process |
|
- | |||||
| 14 | W11547180 | Device, Combination Start (start Relay And Overload) (Replaces: W11359381) |
|
Immediately | $ 37.83 | ||||
| 15 | W11544659 | Screw (Replaces: 8281232) |
|
$ 14.35 | |||||
| 16 | W11546692 | Evaporator (also Order The Following Lokring Parts) (Replaces: W11357918) |
|
$ 263.89 | |||||
| 17 | 2161324 | Clip, Defrost Heater |
|
- | |||||
| 18 | W11578915 | Motor, Condenser Fan (Replaces: W10522629) |
|
Immediately | $ 71.42 | ||||
| 19 | W11678304 | Tray, Evaporator (Replaces: W10897557) |
|
$ 57.39 | |||||
| 20 | W11400740 | Assembly, Heat Shield And Drain Pan |
|
- | |||||
| 21 | W11109499 | Drier (service Drier Without Dye) (also Order The Following Lokring Parts) (Replaces: W10805035) |
|
Immediately | $ 39.12 | ||||
| 22 | W11417341 | Screw (Replaces: W10476309) |
|
$ 14.07 | |||||
| 23 | W10900445 | Frame, Unit Mounting |
|
- | |||||
| 24 | WP489464 | Screw (Replaces: 489464A) |
|
Immediately | $ 8.38 | ||||
| 25 | WP2181929 | Bracket, Fan Mounting (Replaces: 2181929) |
|
$ 12.93 | |||||
| 26 | W11546610 | Heater, Defrost (Replaces: W11355316) |
|
Immediately | $ 129.36 | ||||
| 27 | W11678305 | Assembly, Precooler Formed (Replaces: W11502743) |
|
$ 66.63 | |||||
| 28 | W11580057 | Compressor (also Order The Following Lokring Parts) (Replaces: W11369198) |
|
Immediately | $ 400.16 | ||||
| 29 | W11678963 | Grommet, Compressor (Replaces: W10806346) |
|
$ 8.51 | |||||
| 30 | 489340 | Bolt |
|
- | |||||
| 31 | W10896764 | Baffle, Air (Replaces: W10897567) |
|
$ 101.20 | |||||
| 32 | WPW10339879 | Tie, Wire (Replaces: 2263990) |
|
$ 8.30 | |||||
| 33 | W10897560 | Assembly, Unit Cover (bottom) |
|
$ 101.57 | |||||
| 34 | W11661849 | Assembly, Unit Wire (includes Power Cord) (Replaces: W11383260) |
|
- | |||||
| 35 | W11611126 | Heat Probe (Replaces: W11399989) |
|
$ 23.16 | |||||
| 36 | WP489478 | Screw (Replaces: 489478) |
|
$ 8.18 | |||||
| 37 | W11553819 | Insulation, Sound Deadening (Replaces: 2169104) |
|
Immediately | $ 14.77 | ||||
| 16A | W11504449 | 4/2 Nr Al 00 (capillary Tube To Evaporator) |
|
Immediately | $ 37.44 | ||||
| 16B | W11506619 | 8 Nk Ms 00 (suction Line To Evaporator) |
|
Immediately | $ 25.88 | ||||
| 21A | W11504433 | 6/4 Nr Ms 00 (heat Loop To Drier) |
|
Immediately | $ 29.40 | ||||
| 21B | W11504447 | 5/1.8 Nr Ms 00 (capillary Tube To Drier) |
|
Immediately | $ 43.90 | ||||
| 28A | W11504415 | 8.5/8 Nr Ms 00 (suction Tube To Compressor) |
|
Immediately | $ 25.89 | ||||
| 28B | W11504431 | 7/5 Nr Ms 00 (high Pressure Side To Compressor) |
|
Immediately | $ 27.13 | ||||
| 28C | W11506619 | 8 Nk Ms 00 (suction Line To Evaporator) |
|
Immediately | $ 25.88 | ||||
| 2A | W11506623 | 5 Nk Ms 00 (high Side To Condenser) |
|
Immediately | $ 22.00 | ||||
| 2B | W11504445 | 5/4 Nr Ms 00 (suction Line To Condenser) |
|
Immediately | $ 28.92 | ||||
| NI | NP | Following Parts Not Illustrated |
|
- |
