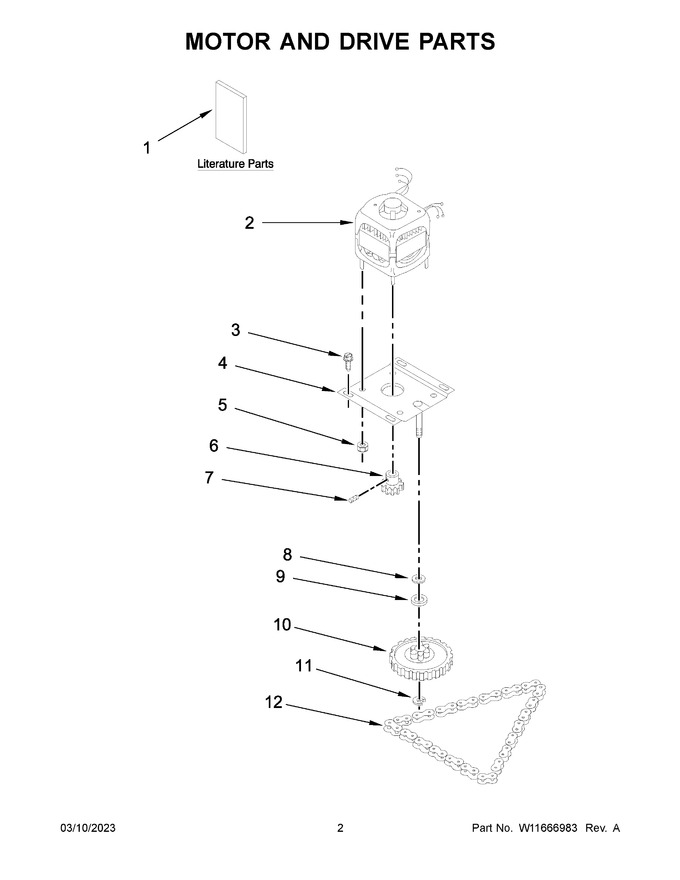

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W11034804 | Guide, Use And Care |
|
- | |||||
| 2 | W10439651 | Motor, Drive (Replaces: W10806338) |
|
$ 343.19 | |||||
| 3 | WP8204624 | Screw (Replaces: 9871067) |
|
$ 17.48 | |||||
| 4 | 776327 | Plate, Drive Mount |
|
- | |||||
| 5 | WP776338 | Locknut (Replaces: 776338) |
|
$ 20.32 | |||||
| 6 | 882699 | Gear, Drive (Replaces: 4149667) |
|
$ 123.55 | |||||
| 7 | WP454512 | Pin, Slotted Spring (Replaces: 454512) |
|
$ 7.92 | |||||
| 8 | 776035 | Washer, Wave |
|
$ 14.05 | |||||
| 9 | W11214485 | Washer, Thrust (Replaces: 297462) |
|
$ 14.24 | |||||
| 10 | 882699 | Gear, Driven (Replaces: 777124) |
|
$ 123.55 | |||||
| 11 | WP776036 | Clip, Ring (Replaces: 776036) |
|
$ 7.80 | |||||
| 12 | 780477 | Chain, Drive |
|
$ 217.07 | |||||
| 1A | W10415490 | Tech Sheet |
|
- | |||||
| 1B | W10318872 | Instruction Sheet |
|
- | |||||
| NI | 9870118A | Undercounter Conversion Kit (Replaces: 9870118) |
|
$ 64.54 | |||||
| NI | NP | Following Parts Not Illustrated |
|
- |
