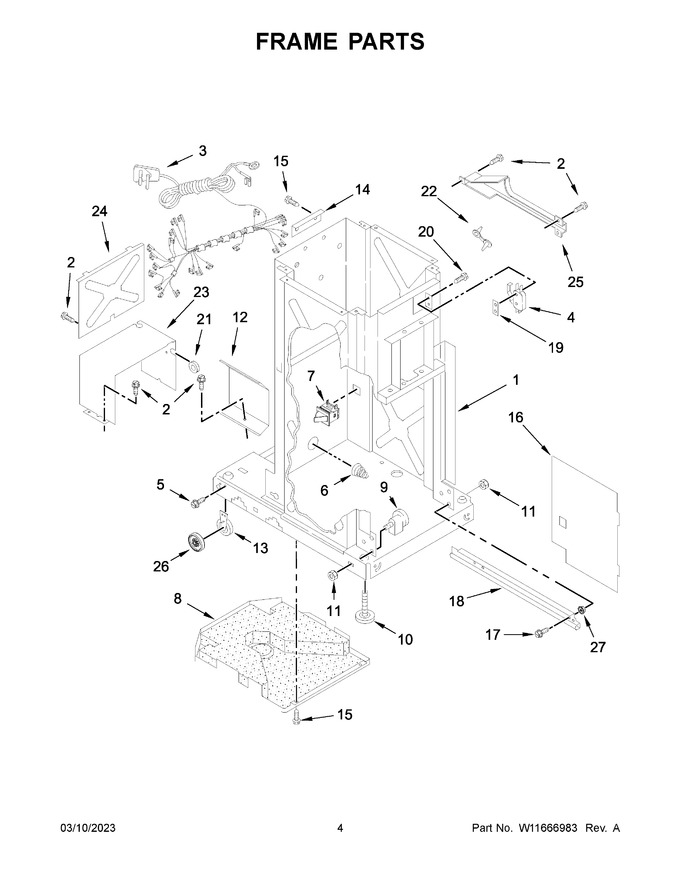

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | NP | Following Parts Not Illustrated |
|
- | |||||
| 2 | WPW10139210 | Screw (Replaces: 4152204) |
|
$ 8.03 | |||||
| 3 | W10830517 | Cord, Power |
|
- | |||||
| 4 | WP777811 | Switch, Top Limit And Directional (Replaces: 777811) |
|
Immediately | $ 116.62 | ||||
| 5 | WP3351614 | Screw (Replaces: 780034) |
|
Immediately | $ 7.30 | ||||
| 6 | WP777180 | Spring, Container (Replaces: 777180) |
|
$ 97.93 | |||||
| 7 | W11243179 | Switch, Drawer Safety (Replaces: W10804315) |
|
$ 74.74 | |||||
| 8 | WP780437 | Pan, Bottom (Replaces: 9870167) |
|
$ 316.61 | |||||
| 9 | 882688 | Bearing, Roller (Replaces: 4153788) |
|
$ 21.19 | |||||
| 10 | WPW10001130 | Foot (Replaces: 775526) |
|
Immediately | $ 7.80 | ||||
| 11 | WP776356 | Locknut (Replaces: 776356) |
|
$ 8.53 | |||||
| 12 | 9870867 | Shield, Slide Track |
|
- | |||||
| 13 | W11023674 | Wheel, Leveler (Replaces: 9870585) |
|
$ 54.05 | |||||
| 14 | 775668 | Angle, Frame Plate |
|
- | |||||
| 15 | WP489478 | Screw (Replaces: W10001260) |
|
$ 8.18 | |||||
| 16 | WP9870444 | Panel, Inner (Replaces: 9870444) |
|
$ 101.92 | |||||
| 17 | WP486754 | Screw (Replaces: 777458) |
|
$ 8.01 | |||||
| 18 | W11722978 | Frame, Slide (right Hand) (Replaces: 9870976) |
|
$ 141.33 | |||||
| 19 | 777850 | Plate, Nut |
|
$ 77.13 | |||||
| 20 | 777849 | Screw |
|
$ 7.36 | |||||
| 21 | W11679167 | Grommet, Motor Cover (Replaces: 776118) |
|
- | |||||
| 22 | W11705832 | Clamp, Wire (Replaces: 777035) |
|
- | |||||
| 23 | 780434 | Cover, Motor |
|
- | |||||
| 24 | 608009 | Plate, Motor Cover |
|
$ 39.79 | |||||
| 25 | 4149659 | Shield, Harness |
|
- | |||||
| 26 | W11672206 | Wheel (Replaces: 780120) |
|
- | |||||
| 27 | W11759042 | Nut, Hex (Replaces: 3400938) |
|
- | |||||
| 18A | WP9870975 | Frame, Slide (left Hand) (Replaces: 9870975) |
|
$ 112.70 |
