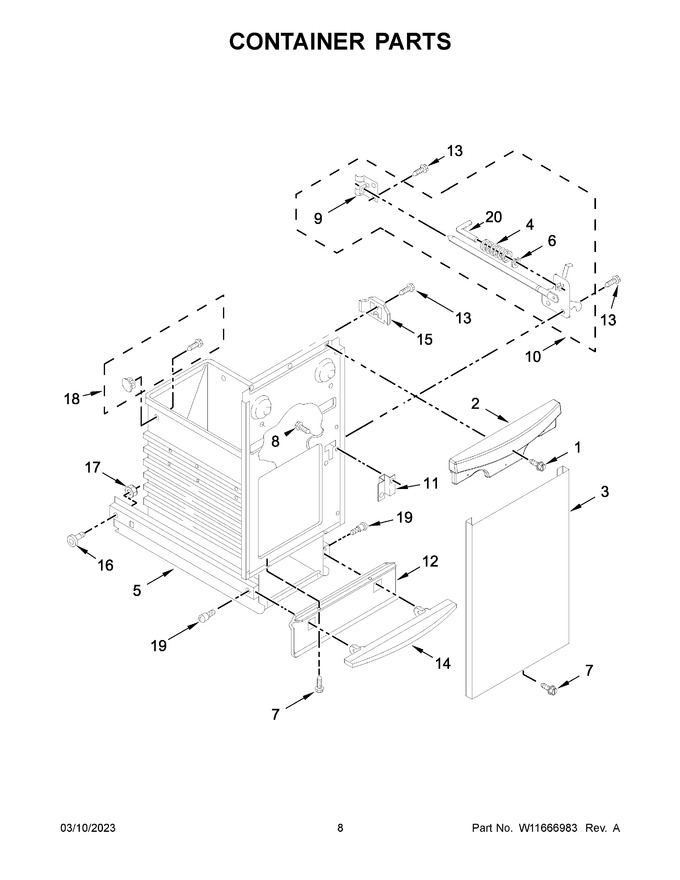

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W11233072 | Screw (Replaces: 489355) |
|
Immediately | $ 14.72 | ||||
| 2 | WP9872040B | Handle, Container (black) (Replaces: 9872040B) |
|
$ 286.66 | |||||
| 3 | NP | Following Parts Not Illustrated |
|
- | |||||
| 4 | 775736 | Spring, Latch |
|
$ 93.80 | |||||
| 5 | WPW10451276 | Container Assembly (Replaces: 9870934) |
|
$ 510.52 | |||||
| 6 | W11679168 | Ring, E (Replaces: 775735) |
|
- | |||||
| 7 | WP3196175 | Screw (Replaces: 3196175) |
|
Immediately | $ 7.55 | ||||
| 8 | WPW10139210 | Screw (Replaces: 4152204) |
|
$ 8.03 | |||||
| 9 | WP776395 | Guide, Rear Latch (Replaces: 776395) |
|
$ 98.10 | |||||
| 10 | 675379 | Latch Assembly (Replaces: 9870066) |
|
$ 182.53 | |||||
| 11 | 775665 | Plate, Latch |
|
$ 62.39 | |||||
| 12 | WPW10242557 | Guard, Toeplate (black) (Replaces: 777328) |
|
$ 142.53 | |||||
| 13 | WP489478 | Screw (Replaces: W10001260) |
|
$ 8.18 | |||||
| 14 | W11679165 | Pedal, Foot (black) (Replaces: 4149672) |
|
$ 62.46 | |||||
| 15 | 9871125 | Actuator, Safety Switch |
|
$ 29.37 | |||||
| 16 | WP9871602 | Bearing, Container Roller (Replaces: 9871602) |
|
$ 13.87 | |||||
| 17 | WP776356 | Locknut (Replaces: 776356) |
|
$ 8.53 | |||||
| 18 | W11705833 | Retainer, Bag (contains 4 Each) (Replaces: 4147703) |
|
- | |||||
| 19 | WP780263 | Screw (Replaces: 780263) |
|
$ 8.34 | |||||
| 20 | W11705836 | Pin, Latch (Replaces: 776654) |
|
- |
