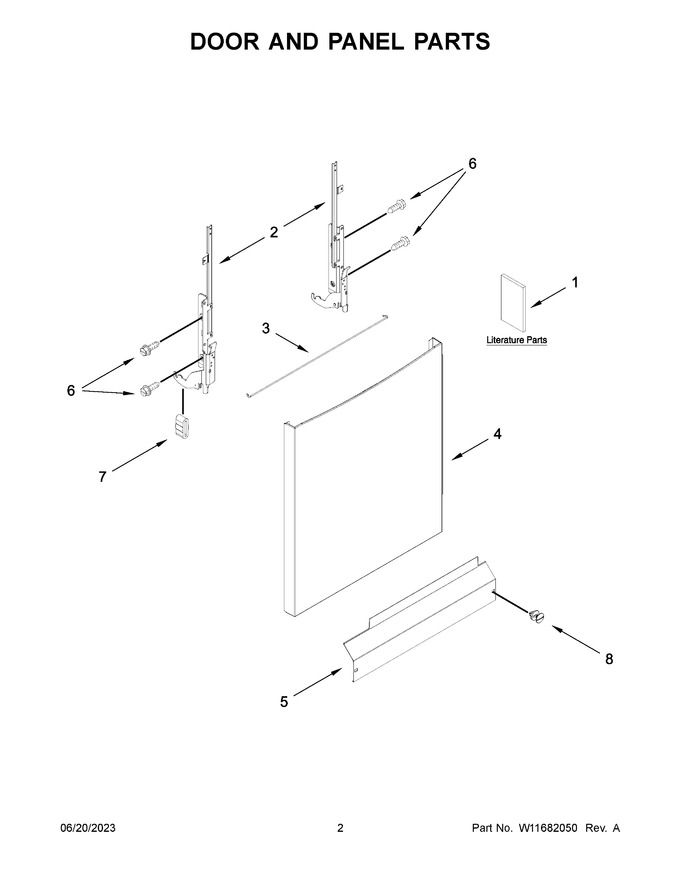

02 - Door And Panel Parts


03 - Control Panel And Latch Parts


04 - Inner Door Parts


05 - Fill, Drain And Overfill Parts


06 - Tub And Frame Parts


07 - Pump, Washarm And Motor Parts


08 - Upper Wash And Rinse Parts


09 - Upper Rack And Track Parts


10 - Lower Rack Parts


11 - Cabinet Parts


12 - Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W11652299		Energy Guide		Appelez-nous	-
2	W11806566		Arm, Hinge (left Hand)   (Replaces: W11546151)			Immediately	$ 71.77
3	W10850371		Stiffener, Door   (Replaces: W10803537)			Immediately	$ 32.88
4	WPW10299777		Panel Front (black)   (Replaces: W10299777)		Appelez-nous	-
5	W10441003		Access Panel (black)			Immediately	$ 83.35
6	WPW10109200		Screw   (Replaces: 489470)			Immediately	$ 8.80
7	WP8268961		Sleeve, Friction   (Replaces: 8268961)			Immediately	$ 5.93
8	WPW10503548		Fastener (black)   (Replaces: W10503548)			Immediately	$ 30.39
1A	W11384188		Owners Manual		Appelez-nous	-
1B	W11348203		Tech Sheet		Appelez-nous	-
2A	W11613572		Arm, Hinge (right Hand)   (Replaces: W11546150)			Immediately	$ 83.93
4A	WPW10299776		Panel Front (white)   (Replaces: W10299776)				$ 195.44
