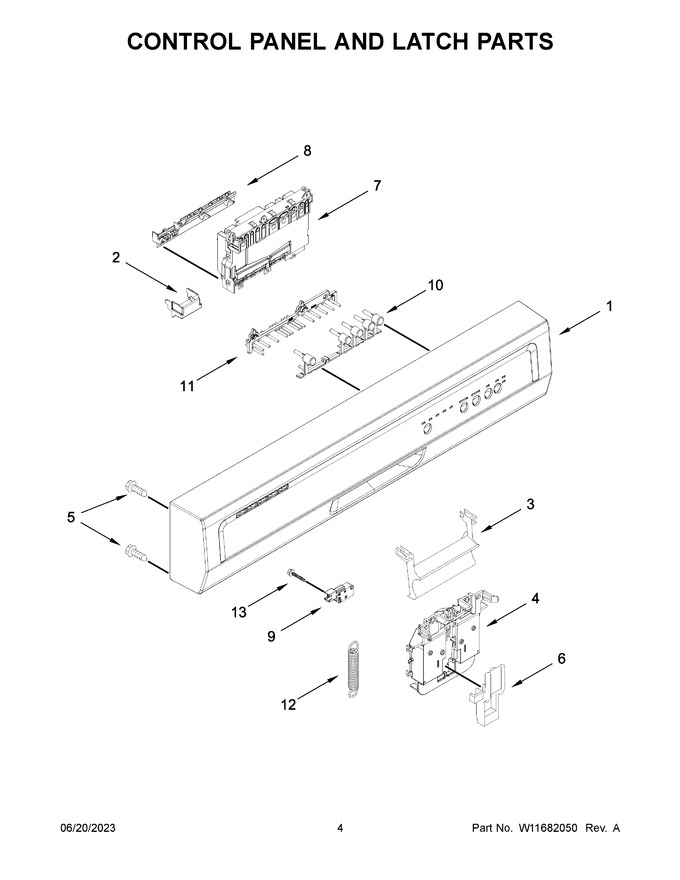

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W11093639 | Console Assembly (includes Insert And Vent Gasket) (black) (Replaces: W10921576) |
|
$ 442.73 | |||||
| 2 | W11305293 | Box, Connector (Replaces: W10825638) |
|
Immediately | $ 236.98 | ||||
| 3 | W11684608 | Handle, Latch (black) (Replaces: W10716685) |
|
$ 8.59 | |||||
| 4 | WPW10274884 | Bolt, Latch (Replaces: W10274884) |
|
Immediately | $ 86.34 | ||||
| 5 | WPW10348409 | Screw (Replaces: W10348409) |
|
Immediately | $ 8.20 | ||||
| 6 | WP8524471 | Actuator, Latch (Replaces: 8524471) |
|
Immediately | $ 101.28 | ||||
| 7 | W11087227 | Control, Electronic (Replaces: W10919361) |
|
Immediately | $ 275.24 | ||||
| 8 | W11305293 | Brace, Connector (Replaces: W10825369) |
|
Immediately | $ 236.98 | ||||
| 9 | WPW10274880 | Switch, Door (Replaces: W10274880) |
|
Immediately | $ 82.89 | ||||
| 10 | W10854044 | Button Tree (Replaces: W10350294) |
|
$ 19.58 | |||||
| 11 | W10913666 | Light Pipe (Replaces: W10350295) |
|
$ 13.70 | |||||
| 12 | W10678341 | Spring, Latch |
|
$ 19.59 | |||||
| 13 | WP3400412 | Screw (Replaces: 3400412) |
|
Immediately | $ 7.94 | ||||
| 1A | W11093640 | Console Assembly (includes Insert And Vent Gasket) (white) (Replaces: W10921574) |
|
Immediately | $ 442.24 | ||||
| 3A | W10716686 | Handle, Latch (white) |
|
$ 31.99 |
