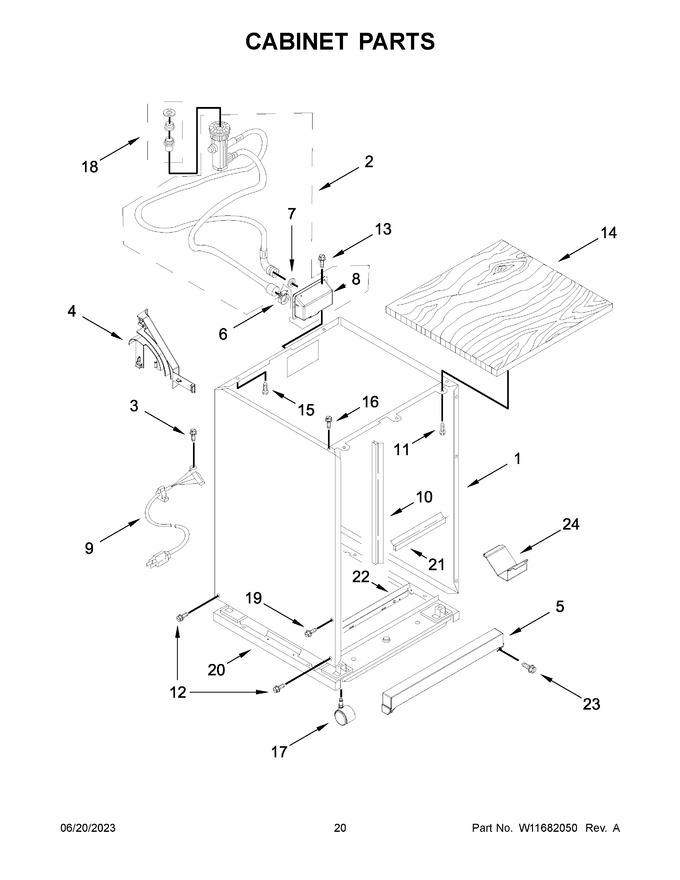

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10356268		Shell Assembly (includes Items 4, 10 & 21) (black)				$ 534.29
2	W10842407		Coupler, Hose Assembly   (Replaces: W10545283)			Immediately	$ 207.55
3	WP3400892		Screw   (Replaces: 3400892)				$ 8.24
4	3378109		Saddle, Hose		Appelez-nous	-
5	W11676533		Shroud, Caster (black)   (Replaces: W10270163)				$ 64.24
6	WP596669		Clamp, Hose   (Replaces: 371505)			Immediately	$ 8.82
7	6013783		Washer		Appelez-nous	-
8	W10219673		Housing, Hose		Appelez-nous	-
9	W11553226		Power Cord   (Replaces: W10496105)				$ 132.69
10	W10219682		Protector, Edge Divider				$ 104.73
11	WP3373329		Screw   (Replaces: 3373329)				$ 8.52
12	3371644		Screw				$ 8.65
13	3370826		Screw		Appelez-nous	-
14	WP3373199		Panel, Top   (Replaces: 3373199)				$ 395.30
15	WP681414		Screw   (Replaces: 304428)			Immediately	$ 8.47
16	302251		Screw		Appelez-nous	-
17	WP8559933		Caster   (Replaces: 8559933)			Immediately	$ 103.49
18	WPW10254672		Adapter, Faucet   (Replaces: W10254672)			Immediately	$ 55.04
19	WPW10213953		Screw   (Replaces: W10213953)			Immediately	$ 7.55
20	W10254984		Frame, Assembly   (Replaces: 8559928)				$ 173.73
21	W10254751		Protector, Edge Short				$ 77.24
22	W10328716		Bar, Blocker		Appelez-nous	-
23	W10001330		Screw		Appelez-nous	-
24	W11666467		Bracket, Tub   (Replaces: W10266781)		Appelez-nous	-
1A	W10356269		Shell Assembly (includes Items 4, 10 & 21) (white)			Immediately	$ 531.89
5A	W10270155		Shroud, Caster (white)				$ 147.38
