Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 W11589935 Owners Manual Appelez-nous -
2 W11693638 Arm, Hinge (left Hand)   (Replaces: W11507818) In-Stock Immediately $ 104.90

3 W11698653 Cross Brace, Door   (Replaces: W11126789) Appelez-nous -
4 W11698632 Nut, Barrel   (Replaces: W11634283) Appelez-nous -
5 W11698515 Panel, Main Access (black)   (Replaces: W11625157) Special Order $ 383.25

6 W11693809 Front Panel (includes 4,10,19,20,21,22 & 23) (stainless)   (Replaces: W11545470) In-Stock Immediately $ 440.65

7 WP302868 Screw (black)   (Replaces: 302868) In-Stock Immediately $ 8.18

8 W11698514 Panel, 2" Adjustable (black)   (Replaces: W11625159) In-Stock Immediately $ 151.25

9 W11698654 Insulation, Inner Door   (Replaces: W11564603) Special Order $ 63.12

10 W11698634 Screw   (Replaces: W10942031) Appelez-nous -
11 W11698633 Screw   (Replaces: W10941985) Appelez-nous -
12 W11690824 Panel, 4" Adjustable (black)   (Replaces: W11625156) Special Order $ 149.34

13 WP302868 Screw   (Replaces: W10942053) In-Stock Immediately $ 8.18

14 W11699047 Insulation, Door   (Replaces: W11575172) Appelez-nous -
15 W11699048 Insulation, Long Tub Lip   (Replaces: W11609389) Appelez-nous -
16 W11690892 Display, Floor   (Replaces: W11540965) In-Stock Immediately $ 217.55

17 W11698657 Insulation, Front Panel   (Replaces: W11641124) Special Order $ 348.89

18 W10708004 Handle (stainless)   (Replaces: W11417401) In-Stock Immediately $ 141.35

19 W11698660 Support, Door (left)   (Replaces: W11545693) Appelez-nous -
20 W10909682 Nameplate   (Replaces: W10518673) In-Stock Immediately $ 76.20

21 W10826179 Screw   (Replaces: W10316572) In-Stock Immediately $ 7.55

22 W11729110 Screw   (Replaces: W11381263) Appelez-nous -
23 W11157086 Stud, Mounting   (Replaces: W11049903) In-Stock Immediately $ 8.87

24 W10917698 Set Screw   (Replaces: W10687133) In-Stock Immediately $ 7.55

19A W11698659 Support, Door (right)   (Replaces: W11545696) Appelez-nous -
1A W11645481 Energy Guide Appelez-nous -
1B W11663923 Tech Sheet Appelez-nous -
2A W11693639 Arm, Hinge (right Hand)   (Replaces: W11507890) In-Stock Immediately $ 104.90


    View Diagram in Separate Window     Print Icon   Print Part List

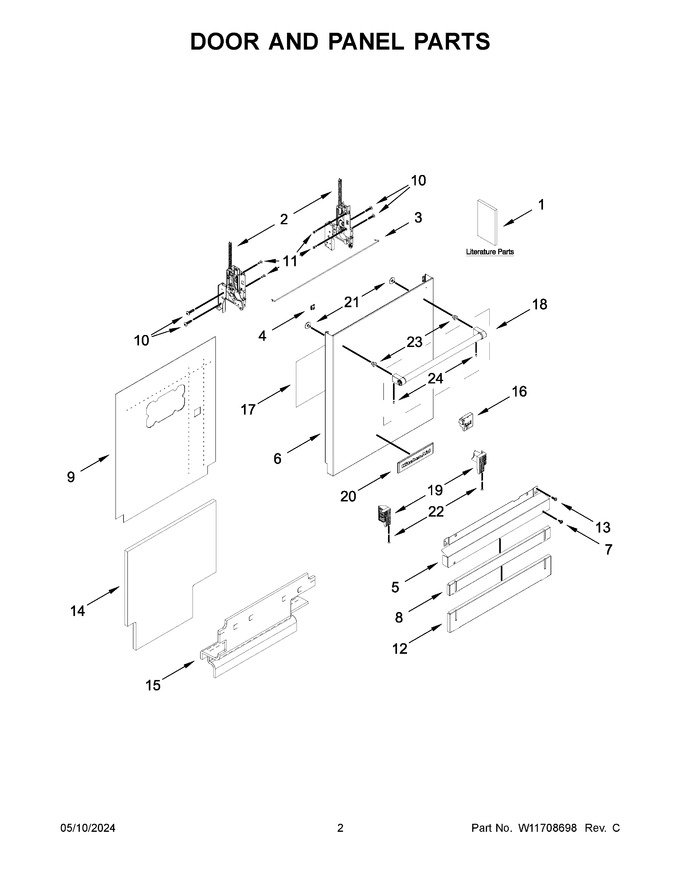

Diagram for KDTF924PPS0
