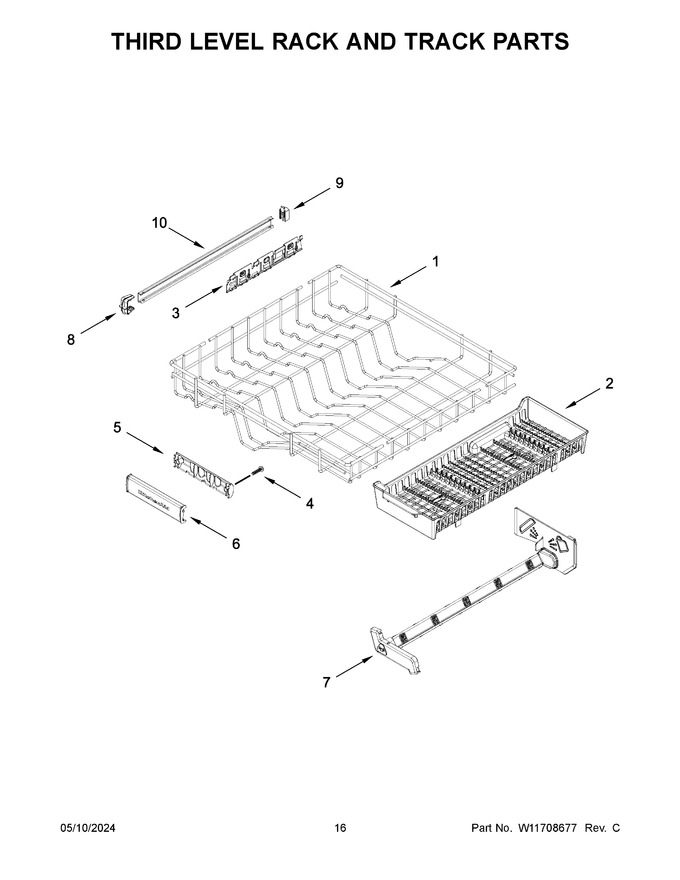

09 - Third Level Rack And Track Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W11698667		Rack, Third Level   (Replaces: W11543809)				$ 170.88
2	W11698668		Silverware Tray   (Replaces: W11545952)		Appelez-nous	-
3	W11698982		Mount, Dishrack (left)   (Replaces: W11525717)				$ 61.39
4	W11698986		Screw   (Replaces: W11337336)				$ 87.74
5	W11699021		Handle, Rear   (Replaces: W11590235)		Appelez-nous	-
6	W11699036		Handle, Front   (Replaces: W11590245)		Appelez-nous	-
7	W11690840		Washarm Assembly   (Replaces: W11528590)		Appelez-nous	-
8	W11697417		Track Stop, Front   (Replaces: W11315114)		Appelez-nous	-
9	W11697418		Track Stop, Rear   (Replaces: W11315116)				$ 14.96
10	W11697497		Track, Dishrack   (Replaces: W10884045)			Immediately	$ 146.80
3A	W11698979		Mount, Dishrack (right)   (Replaces: W11525715)				$ 59.85
