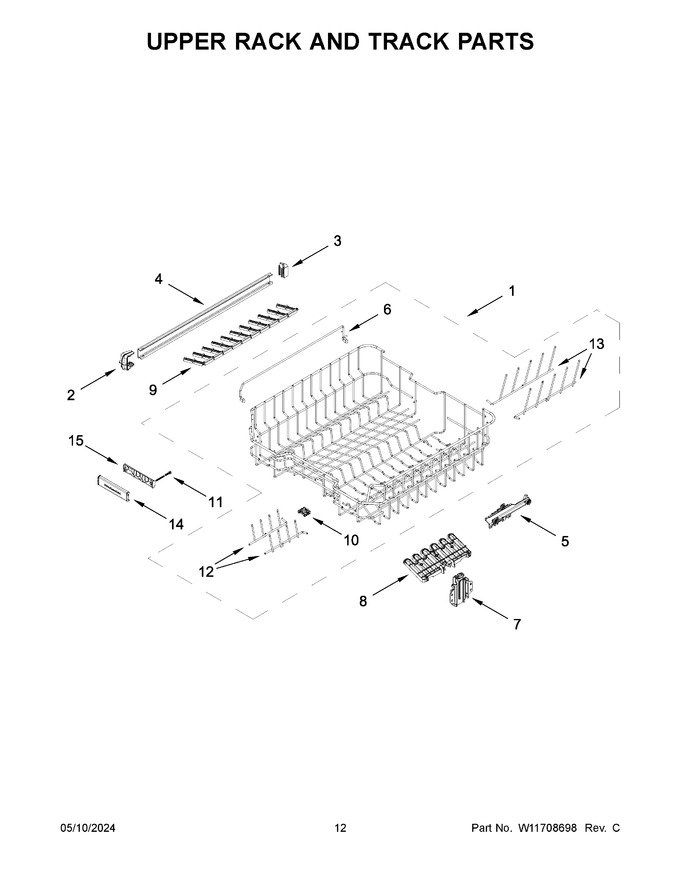

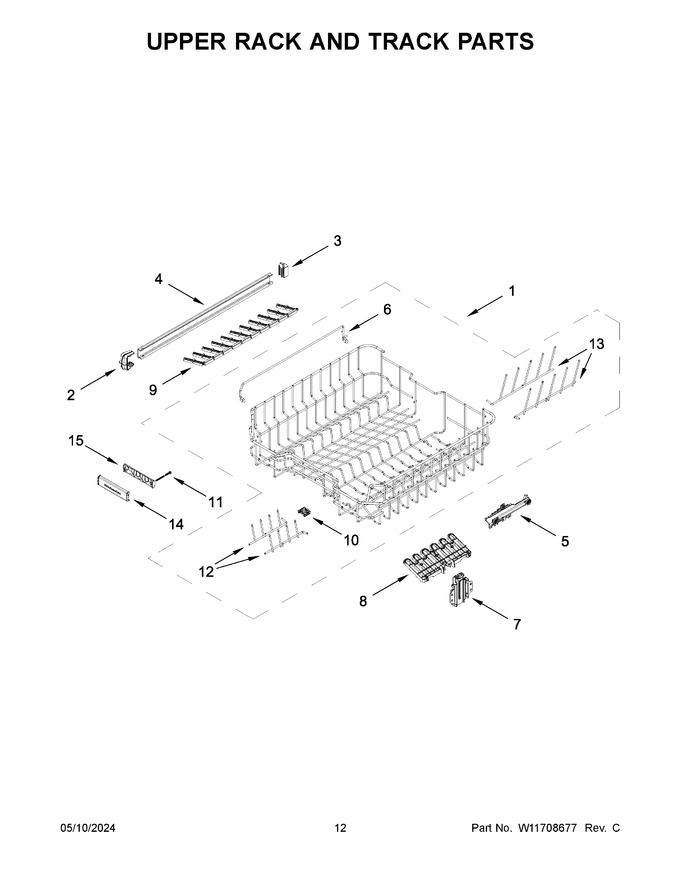

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W11698984		Dishrack, Upper   (Replaces: W11534668)				$ 162.76
2	W11697417		Track Stop, Front   (Replaces: W11315114)		Appelez-nous	-
3	W11697418		Track Stop, Rear   (Replaces: W11315116)				$ 14.96
4	W11697497		Track, Dishrack   (Replaces: W10884045)			Immediately	$ 146.80
5	W11693804		Adjustment Assembly (left)   (Replaces: W11561903)				$ 104.80
6	W11690622		Support, Tine Row   (Replaces: W11356045)		Appelez-nous	-
7	W11698152		Clip, Cup Shelf   (Replaces: W11592682)				$ 125.97
8	W11698154		Cup Shelf   (Replaces: W11592896)		Appelez-nous	-
9	W11697498		Tine Row, Fold Down   (Replaces: W11538488)		Appelez-nous	-
10	W11690826		Clip, Tine Row   (Replaces: W11315981)				$ 25.25
11	W11698986		Screw   (Replaces: W11337336)				$ 87.74
12	W11690827		Tine Row, Front (left)   (Replaces: W11598462)		Appelez-nous	-
13	W11690829		Tine Row, Back (left)   (Replaces: W11534672)		Appelez-nous	-
14	W11699007		Handle, Front   (Replaces: W11590247)		Appelez-nous	-
15	W11699021		Handle, Rear   (Replaces: W11590235)		Appelez-nous	-
12A	W11690828		Tine Row, Front (right)   (Replaces: W11598463)		Appelez-nous	-
13A	W11690830		Tine Row, Back (right)   (Replaces: W11534677)		Appelez-nous	-
5A	W11693805		Adjustment Assembly (right)   (Replaces: W11561902)				$ 104.80
