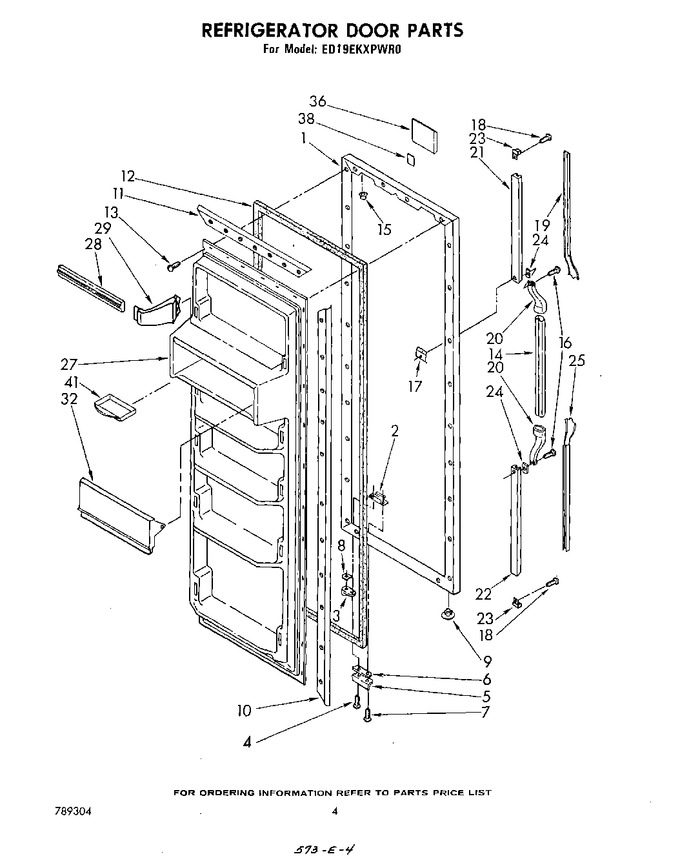

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	1101363		Refrigerator, Door Panel (toast)				$ 1.85
1	1101364		Refrigerator, Door Panel (platinum)		Appelez-nous	-
1	941246		Refrigerator, Door Panel (white)		Appelez-nous	-
1	941247		Refrigerator, Door Panel (coffee)		Appelez-nous	-
1	941248		Refrigerator, Door Panel (golden Harvest)		Appelez-nous	-
1	941250		Refrigerator, Door Panel (almond)		Appelez-nous	-
2	988402		Tap Plate		Appelez-nous	-
3	4318165		Door, Cam Upper   (Replaces: 986758)			Immediately	$ 27.36
4	WP489069		Screw, 8 X 1/2   (Replaces: 488938)			Immediately	$ 7.86
5	988420		Bracket, Door Stop		Appelez-nous	-
6	988421		Shim		Appelez-nous	-
7	488549		Screw, 8 X 5/8		Appelez-nous	-
8	WP1104787		Shim, Door Closer   (Replaces: 1104787)				$ 7.58
9	534927		Hole Plug		Appelez-nous	-
10	836120		Retainer, Side		Appelez-nous	-
11	836121		Retainer, Top & Bottom		Appelez-nous	-
12	2188404A		Door, Gasket Magnetic   (Replaces: 939565)				$ 269.26
13	WP489069		Screw, No.7 X 1/2   (Replaces: 489101)			Immediately	$ 7.86
13	WP681414		Screw ((repair))   (Replaces: 488552)			Immediately	$ 7.85
14	1105718		Handle, Center		Appelez-nous	-
15	509929		Cap, Hinge Sleeve		Appelez-nous	-
16	WPW10141645		Screw, 8 X 1/2   (Replaces: 489084)				$ 7.67
17	941242		Screw Anchor (2)		Appelez-nous	-
18	489075		Screw, 10-32 X 5/8		Appelez-nous	-
19	1105775		Insert, Handle (top)		Appelez-nous	-
20	935103		Center End Cap (2)		Appelez-nous	-
21	941260		Insert Retainer (top)		Appelez-nous	-
22	941262		Insert Retainer (bottom)		Appelez-nous	-
23	941259		End Cap		Appelez-nous	-
24	935075		Shim, Handle End (2)		Appelez-nous	-
25	1105720		Insert, Handle (bottom)		Appelez-nous	-
27	981428		Interior Door Panel		Appelez-nous	-
28	1105774		Trim, Door Shelf		Appelez-nous	-
29	WP849996		Retainer, Door Trim   (Replaces: 849996)				$ 7.57
32	1105773		Compartment Door		Appelez-nous	-
36	1104899		Nameplate		Appelez-nous	-
38	991259		Tape Strip		Appelez-nous	-
41	520747		Tray, Butter		Appelez-nous	-
