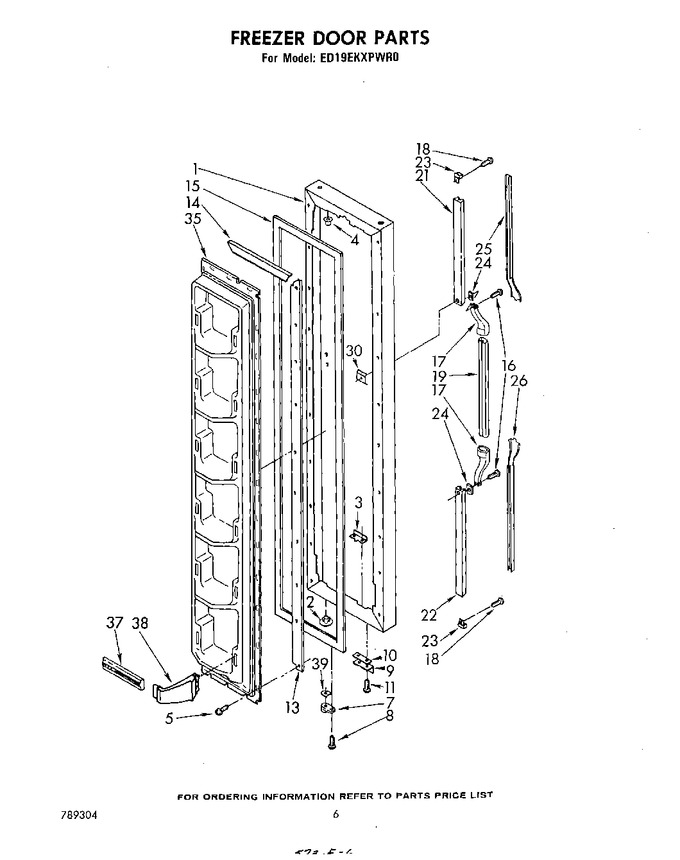

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 1101365 | Freezer, Door Panel (toast) |
|
- | |||||
| 1 | 1101366 | Freezer Door Panel (platinum) |
|
- | |||||
| 1 | 941254 | Freezer, Door Panel (white) |
|
- | |||||
| 1 | 941255 | Freezer, Door Panel (coffee) |
|
- | |||||
| 1 | 941256 | Freezer, Door Panel (golden Harvest) |
|
- | |||||
| 1 | 941258 | Freezer, Door Panel (almond) |
|
- | |||||
| 2 | 534927 | Hole Plug |
|
- | |||||
| 3 | 988402 | Tap Plate |
|
- | |||||
| 4 | 509929 | Cap, Hinge Sleeve |
|
- | |||||
| 5 | WP489069 | Screw, 7 X 1/2 (Replaces: 489101) |
|
Immediately | $ 8.40 | ||||
| 5 | WP681414 | Screw ((repair)) (Replaces: 488552) |
|
Immediately | $ 8.47 | ||||
| 7 | 4318165 | Door Closer, Cam (Replaces: 986758) |
|
Immediately | $ 29.74 | ||||
| 8 | WP489069 | Screw, 8 X 1/2 (Replaces: 488938) |
|
Immediately | $ 8.40 | ||||
| 9 | 988420 | Bracket, Door Stop |
|
- | |||||
| 10 | 988421 | Shim |
|
- | |||||
| 11 | 488930 | Screw (repair) |
|
- | |||||
| 11 | 488549 | Screw, 8 X 5/8 |
|
- | |||||
| 13 | 836120 | Retainer, Gasket (side) (2) |
|
- | |||||
| 14 | 836122 | Retainer, Gasket Top & Bottom (2) |
|
- | |||||
| 15 | 2188405A | Door, Gasket Magnetic (Replaces: 939566) |
|
$ 368.63 | |||||
| 16 | WPW10141645 | Screw, 8 X 1/2 (Replaces: 489084) |
|
$ 8.05 | |||||
| 16 | WP681414 | Screw ((repair)) (Replaces: 488552) |
|
Immediately | $ 8.47 | ||||
| 17 | 935103 | Handle End Cap (2) |
|
- | |||||
| 18 | 489075 | Screw, 10-32 X 5/8 |
|
- | |||||
| 19 | 1105718 | Handle, Center |
|
- | |||||
| 21 | 941260 | Insert Retainer (top) |
|
- | |||||
| 22 | 941262 | Insert Retainer (bottom) |
|
- | |||||
| 23 | 941259 | End Cap (2) |
|
- | |||||
| 24 | 935075 | Handle, Center Shim (2) |
|
- | |||||
| 25 | 1105775 | Insert, Handle (top) |
|
- | |||||
| 26 | 1105720 | Insert, Handle (bottom) |
|
- | |||||
| 30 | 941242 | Screw Anchor |
|
- | |||||
| 35 | 937457 | Interior, Door Panel |
|
- | |||||
| 37 | 1105777 | Trim, Door Shelf |
|
- | |||||
| 38 | WP849996 | Support Trim End (Replaces: 849996) |
|
$ 7.95 | |||||
| 39 | WP1104787 | Shim, Door Closer (Replaces: 1104787) |
|
$ 7.96 |
