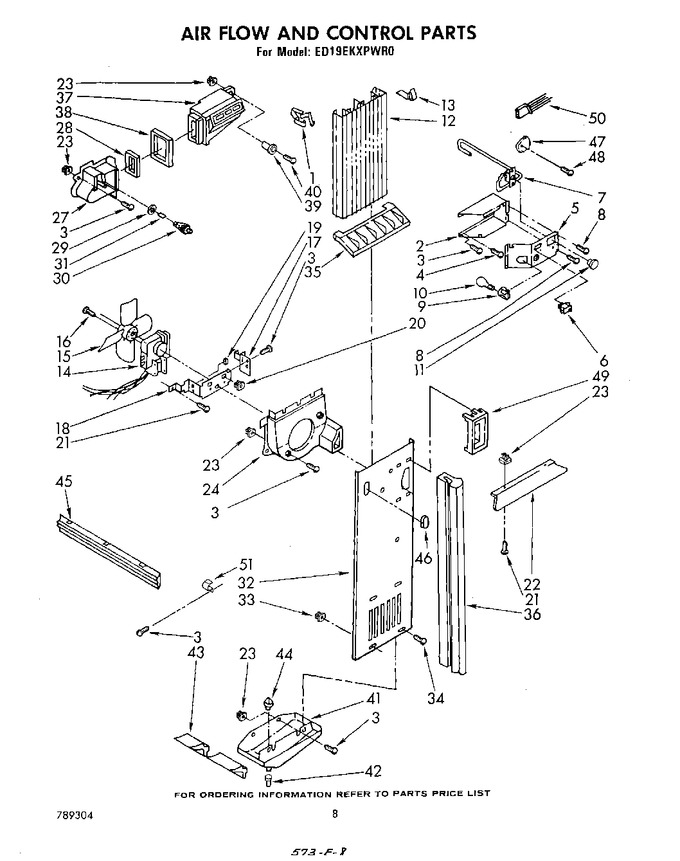

05 - Airflow And Control


06 - Shelves


07 - Unit , Lit/optional


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	2215823		Clip, Air Duct   (Replaces: 842534)				$ 10.42
2	984550		Box, Control		Appelez-nous	-
3	W11624204		Screw, 8 X 1/2   (Replaces: 486194)				$ 14.02
4	488474		Screw, 8-32 X 3/8		Appelez-nous	-
5	934045		Control Box Front		Appelez-nous	-
6	938049		Toggle, Switch		Appelez-nous	-
7	WP4317800		Thermostat & Barrier Assembly   (Replaces: 946644)			Immediately	$ 265.41
8	WP489128		Screw, 8-32 X 3/8   (Replaces: 488500)				$ 10.88
9	4387478		Socket   (Replaces: 851067)			Immediately	$ 110.16
10	8009		Light Bulb   (Replaces: 527949)			Immediately	$ 18.67
11	836482		Knob, Temperature		Appelez-nous	-
12	842399		Duct, Air		Appelez-nous	-
13	987954		Baffle, Air		Appelez-nous	-
14	SM999		Motor, Fan   (Replaces: 549212)			Immediately	$ 30.26
15	992920		Blade, Fan				$ 39.91
16	00487887		Screw, 3-48 X 1/4   (Replaces: 487887)				$ 244.80
17	548263		Fan, Bracket Double		Appelez-nous	-
18	548264		Fan, Bracket Single		Appelez-nous	-
19	548268		Fan Mounting Grommet		Appelez-nous	-
20	538449		Screw Grommet		Appelez-nous	-
21	WP489069		Screw, 8 X 1/2   (Replaces: 488772)			Immediately	$ 7.86
22	836216		Baffle, Liner Top		Appelez-nous	-
23	842339		Grommet		Appelez-nous	-
24	991285		Scroll Fan		Appelez-nous	-
27	841269		Air, Scoop Assembly (includes Illus. 28)		Appelez-nous	-
28	844871		Gasket, Air Scoop		Appelez-nous	-
29	938439		Retainer, Damper		Appelez-nous	-
30	837445		Control Knob Assembly		Appelez-nous	-
31	837444		Knob, Retainer		Appelez-nous	-
32	984466		Cover, Evaporator		Appelez-nous	-
33	848445		Grommet		Appelez-nous	-
34	WP488729		Screw, 8-15 X 1/2   (Replaces: 488992)			Immediately	$ 7.79
35	836144		End Cap, Cover		Appelez-nous	-
36	841606		Gasket, Evaporator		Appelez-nous	-
37	946145		Air Diffuser Assembly		Appelez-nous	-
38	842394		Gasket, Air Diffuser		Appelez-nous	-
39	836667		Spacer		Appelez-nous	-
40	488357		Screw, 8 X 1-1/4		Appelez-nous	-
41	842404		Drain Pan Assembly		Appelez-nous	-
42	841770		Fitting, Drain Pan		Appelez-nous	-
43	845564		Gasket, Drain Pan		Appelez-nous	-
44	842259		Cap, Drain		Appelez-nous	-
45	821142		Cover, Heat Exchanger   (Replaces: 836514)				$ 68.91
46	659776		Grommet, Inlet Tube		Appelez-nous	-
47	W10822278		Defrost Timer, 10 Hr.   (Replaces: 943435)			Immediately	$ 34.44
48	WP3388228		Screw, 6-20 X 3/8   (Replaces: 488911)				$ 6.95
49	835740		Grille		Appelez-nous	-
50	481782		Wiring Defrost Timer		Appelez-nous	-
51	836077		Tube Clamp		Appelez-nous	-
