Cabinet And Unit Parts

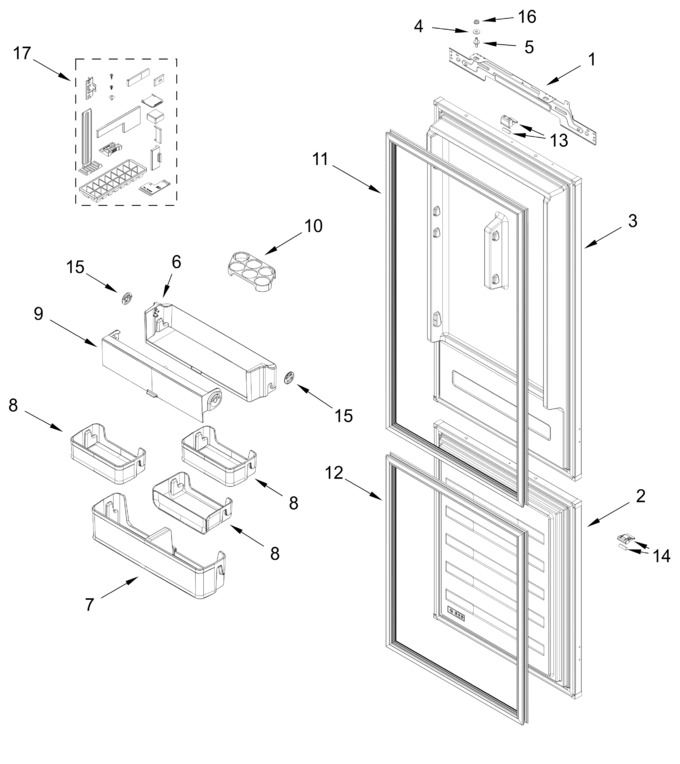

Door Parts


Shelf Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W11726272		Bracket Assembly   (Replaces: W10701782)				$ 59.81
2	W11681912		Door, Freezer		Appelez-nous	-
3	W11681913		Door, Refrigerator				$ 699.63
4	W11726273		Washer   (Replaces: W10669329)			Immediately	$ 12.87
5	W11726274		Screw   (Replaces: W10648794)				$ 12.92
6	W11676910		Bin, Dairy   (Replaces: W11591885)		Appelez-nous	-
7	W11676911		Bin, Bottle   (Replaces: W11591891)		Appelez-nous	-
8	W11676912		Bin, Half   (Replaces: W11591893)				$ 75.34
9	W11676915		Bin, Front   (Replaces: W11591890)		Appelez-nous	-
10	W10575475		Holder, Egg				$ 11.66
11	W11676918		Gasket, Refrigerator   (Replaces: W11345237)		Appelez-nous	-
12	W11676919		Gasket, Freezer   (Replaces: W11345242)		Appelez-nous	-
13	W11681945		Support, Magnet		Appelez-nous	-
14	W11678793		Cover, Door Magnet   (Replaces: W11332213)			Immediately	$ 117.32
15	W11678794		Bumper, Compartment   (Replaces: W11184264)		Appelez-nous	-
16	W11788429		Nut, Lock   (Replaces: W10669328)		Appelez-nous	-
17	W11720868		Installation Kit (includes Panel Mounting Hardware, Screw Covers, Ice Tray & Scraper)   (Replaces: W11681942)				$ 160.21
